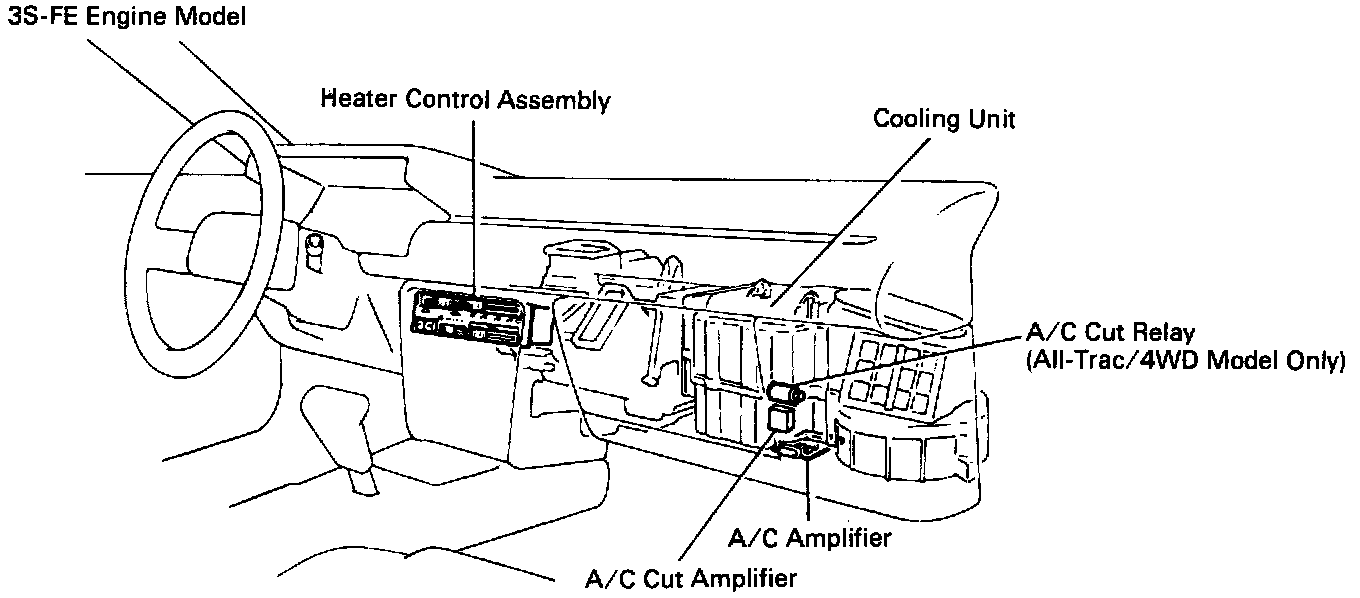

Control Module HVAC: Locations






Located on the bottom of the evaporator housing, passenger's side underdash.
