Magnetic Clutch Relay

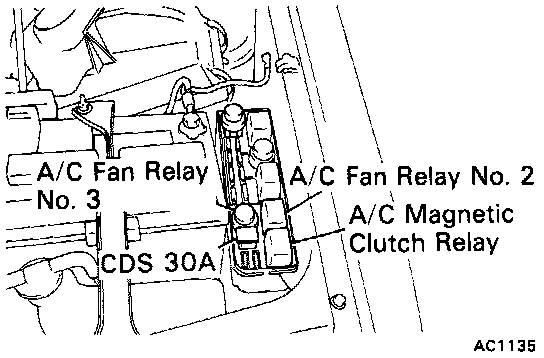

1. Remove cover of relay box.
2. Remove relay.

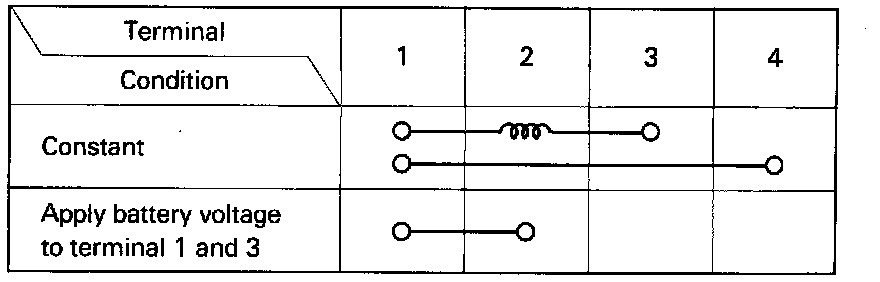

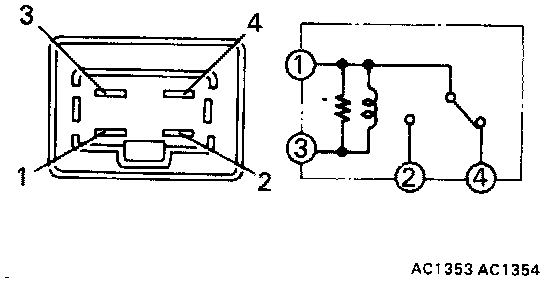

3. Inspect relay continuity.
If continuity is not as specified, replace the relay.
