Shift Interlock Switch: Testing and Inspection

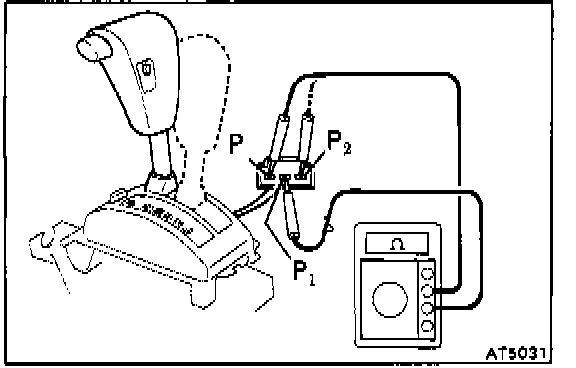

INSPECT SHIFT LOCK CONTROL SWITCH

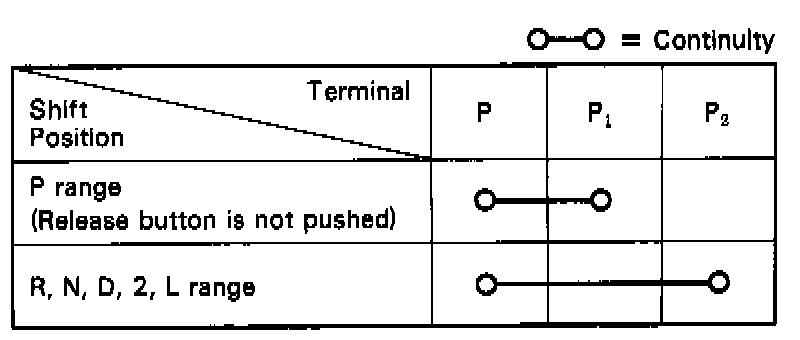

Inspect that there is continuity between each terminals.
