Four-Wheel Drive System
Four-Wheel Drive System

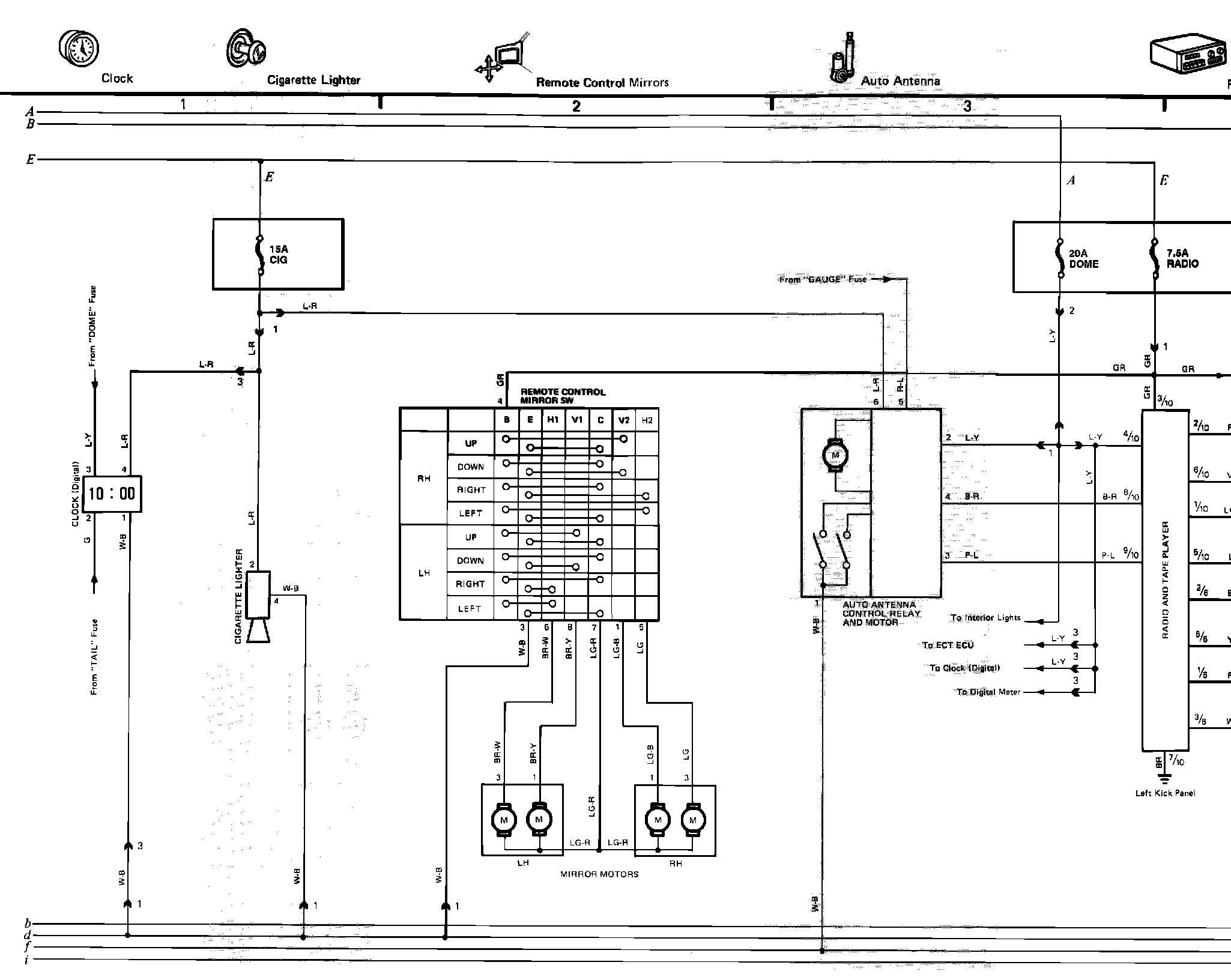

X$&}k&Clock, Cigarette Lighter, Mirrors, Antenna, Radio, All/Trac 4WD, ABS And Power Seat Wiring Circuits:
Power Source:
