Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Wiring Diagrams >> A/T >> All Except 4 Wheel Drive

All Except 4 Wheel Drive

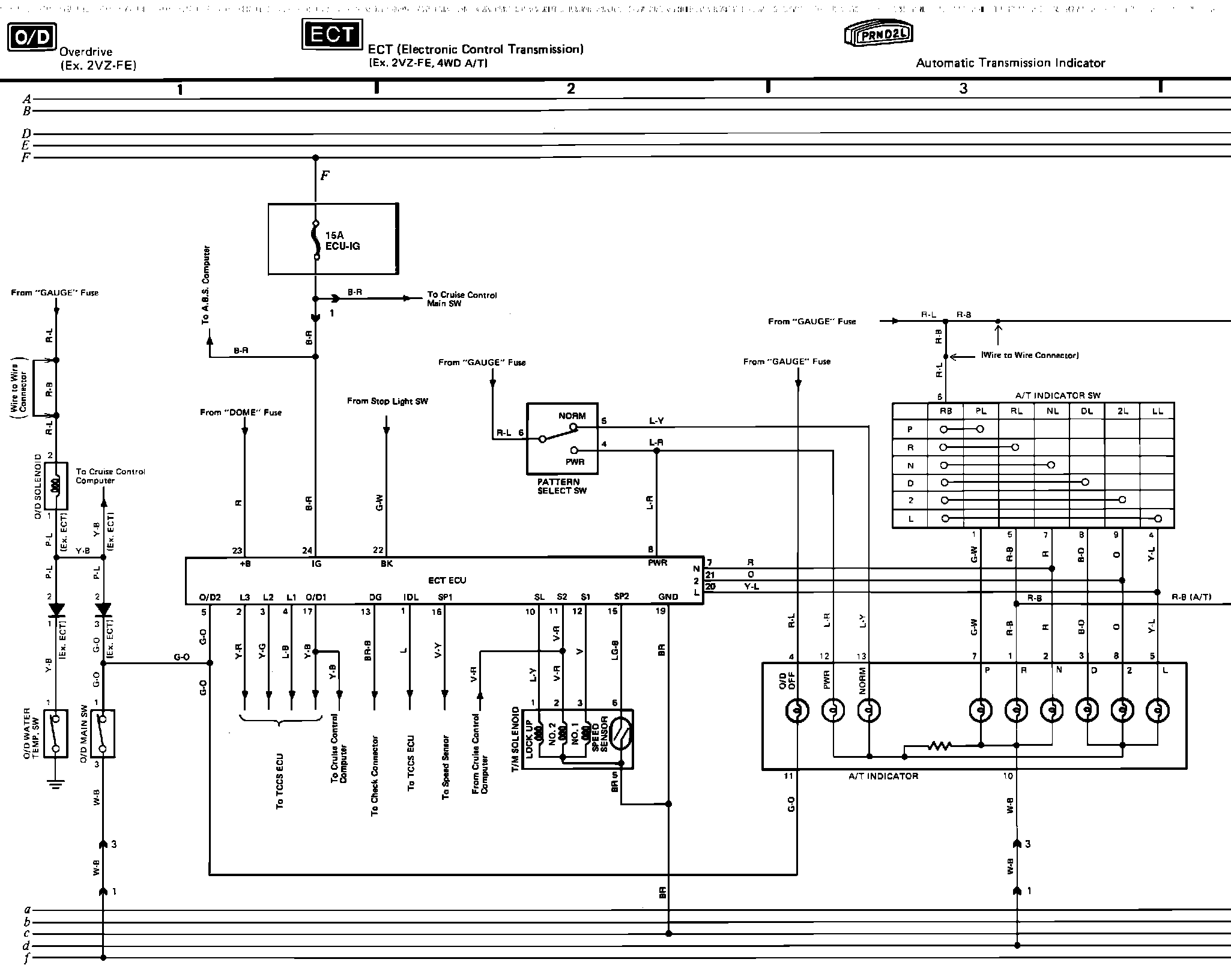

�9$Q{$Automatic Transmission, Back-Up Lights, Wiper/Washer, Turn Signal, Hazard, Horn And Rear Window Defogger Wiring Circuits:



Power Source:
