Shift Interlock Solenoid: Testing and Inspection

INSPECT SHIFT LOCK SOLENOID

(a) Disconnect the solenoid connector.

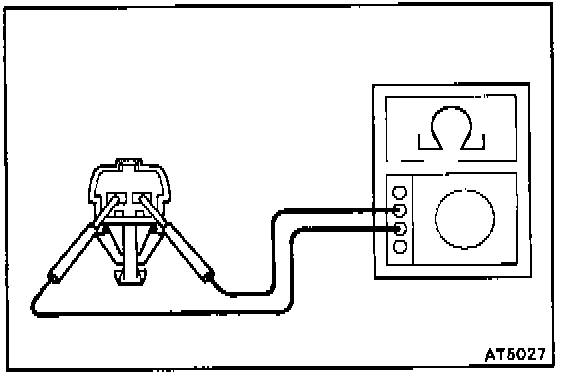

(b) Using an ohmmeter, measure the resistance between terminals.

Standard resistance: 1 - 27 Ohms





(c) Apply the battery voltage between terminals. Check that an operation noise can be heard from the solenoid.
