Signal Generator Pick-Up Coils

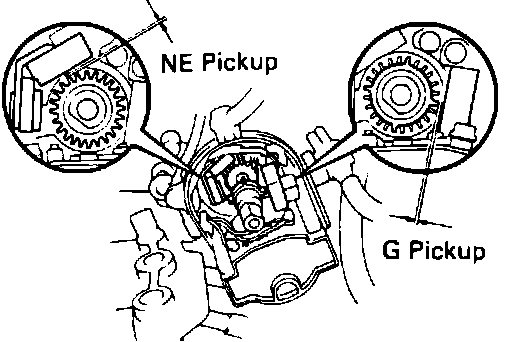

***UPDATED BY TSB# EN91-007, JUNE 1991Pick-up Coil Resistance:
1. Disconnect the wiring connector near the distributor.
2. Connect one end of an ohmmeter to the G terminal. Connect the other end to the G- terminal.
G Pickup Coil Resistance: 130 - 210 ohms
3. Connect one end of an ohmmeter to the Ne terminal. Connect the other end to the G- terminal.
NE Pickup Coil Resistance: 130 - 210 ohms
Pick-up Coil Air Gap:
4. Using a non magnetic feeler gauge, measure the gap between the signal rotor and pickup coil projection.
Air Gap: 0.008 in (0.2 mm) or more
NOTE: The air gap is not adjustable. If any of the above tests reveal a pick-up coil outside specifications, replace the distributor housing assembly.
