Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Electrical Diagrams >> Electrical and Electronic Diagrams

Electrical and Electronic Diagrams

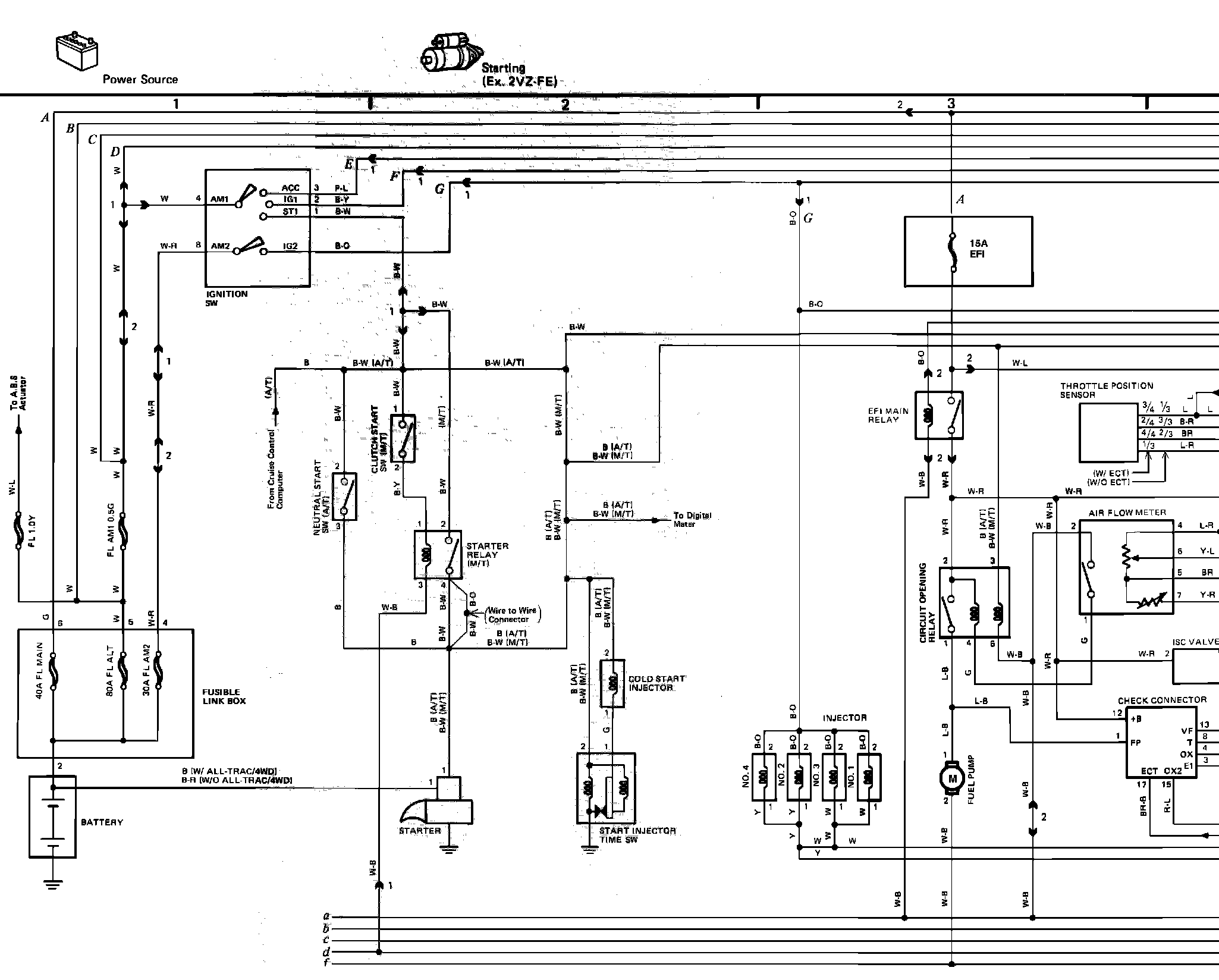

Px~ �~Battery, Starting, Computer Control, Ignition, Cooling Fan And Charging System Wiring Circuits:
