Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Seat Belt Reminder Lamp >> Testing and Inspection >> Unlock Warning Switch

Unlock Warning Switch

Ignition/Unlock Warning Switch Testing:

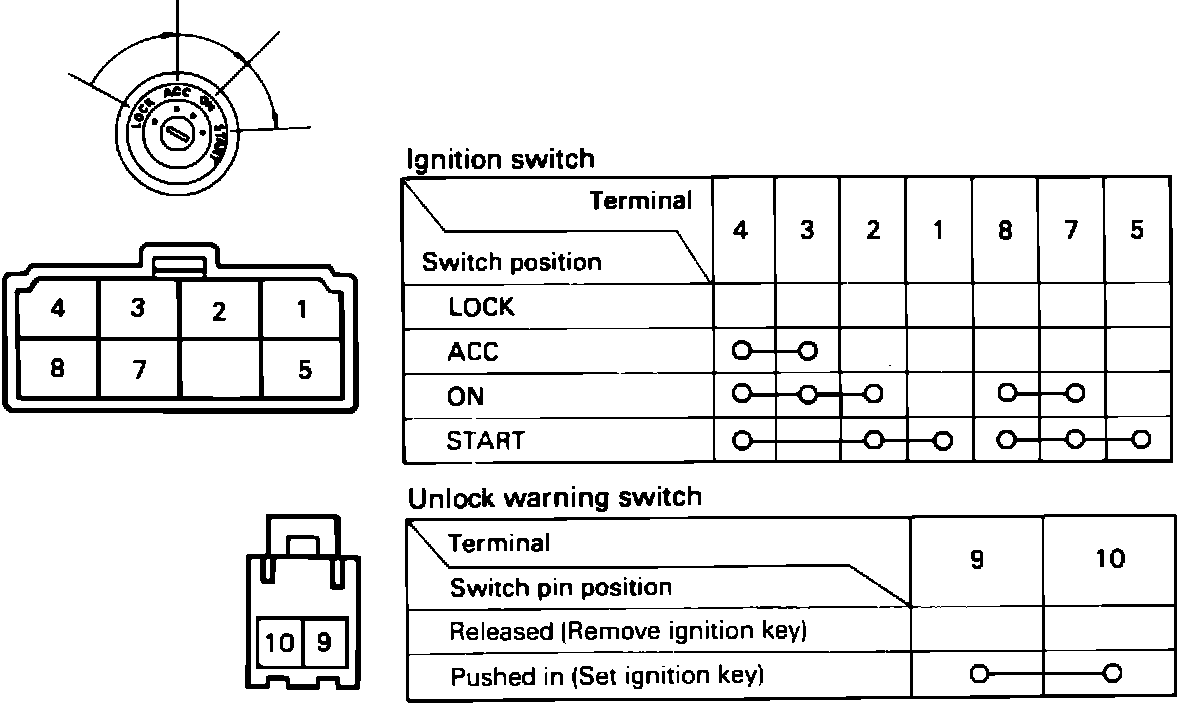

1. Check switch as described on image chart.
2. If not as specified, replace switch.
