Seat Belt Warning Light

Automatic Shoulder Belt Circuit:

1. Disconnect the computer connector.

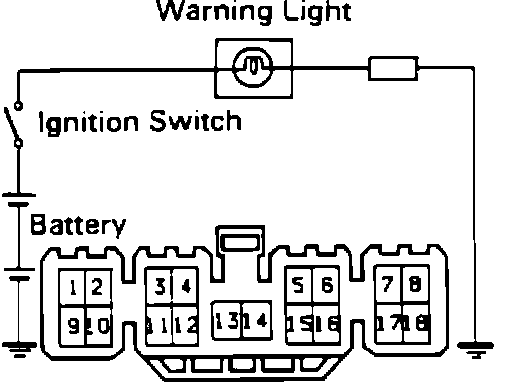

Seatbelt Warning Light:

2. Using a jumper wire, ground terminal #10 of the computer connector.

3. Turn ignition switch on. Ensure seat belt warning light illuminates.

4. If seat belt warning lamp does not light, check bulb or wiring from connector to bulb.
