Release Lever Warning Light
Release Lever Warning Light

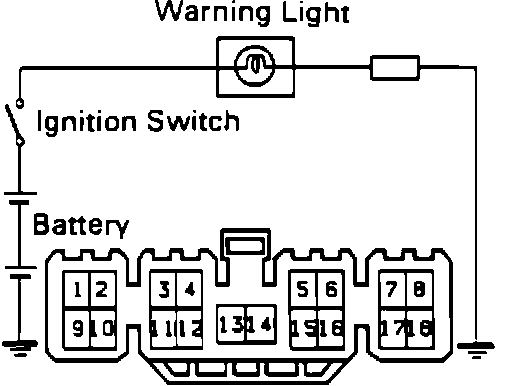

Release Lever Warning Light:
1.
Ground terminal #2. Turn ignition switch on. Ensure release lever warning light illuminates.
2.
If release lever warning lamp does not light, check bulb or wiring from connector to bulb.
