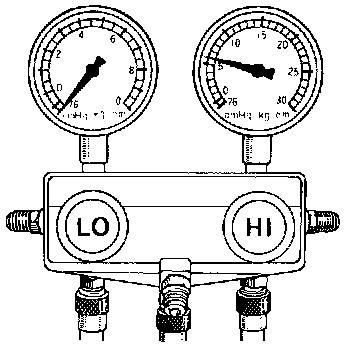

Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Troubleshooting With Manifold Pressure Gauges >> Refrigerant Does Not Circulate

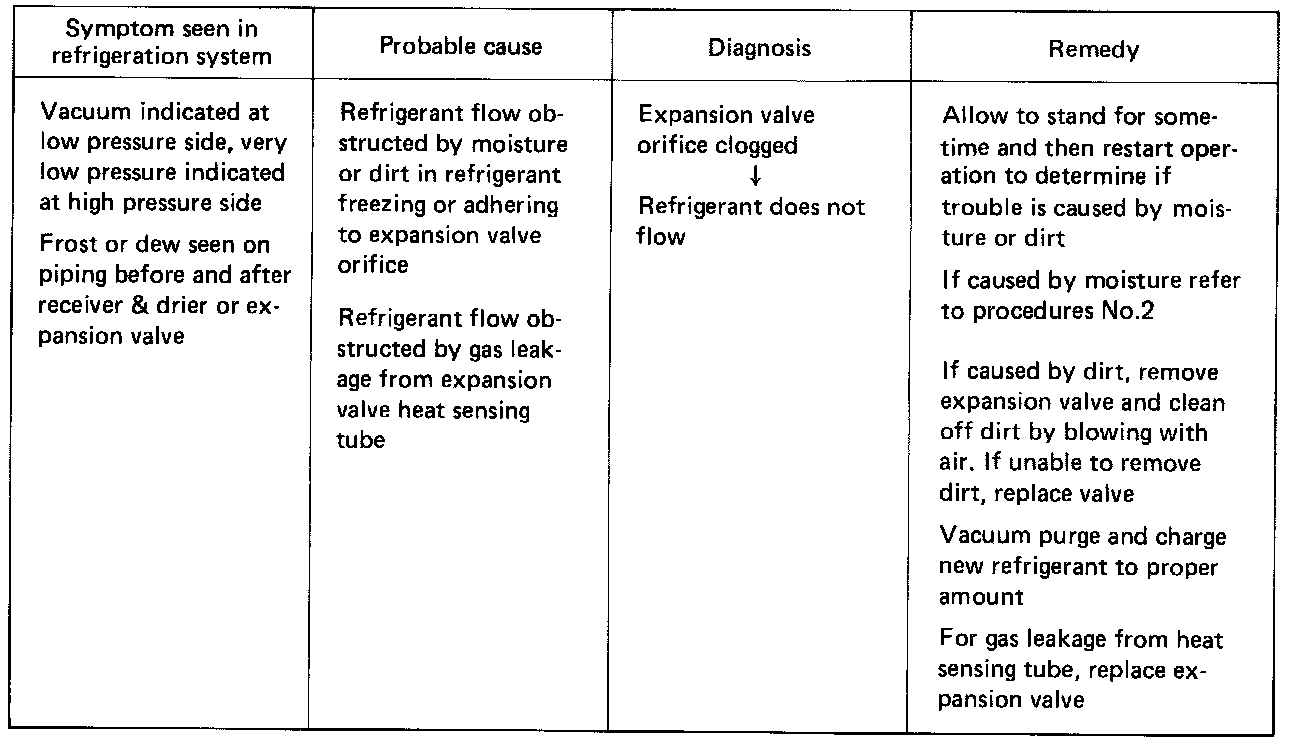

Refrigerant Does Not Circulate









Condition: Does not cool (Cools from time to time in some cases)
