Troubleshooting With Manifold Pressure Gauges
>>

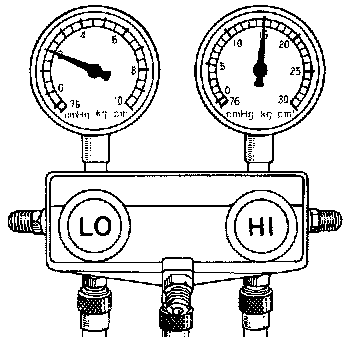

Normally Functioning Refrigeration System
Normally Functioning Refrigeration System
Low pressure side
147-196 kPa (21-28 psi)
High pressure side
1,422-1,471 kPa (206-213 psi)
