Refrigerant Volume
Refrigerant Volume
1.
Run engine at approx. 2OOO RPM.
2.
Operate air conditioner at maximum cooling for a few minutes.
3.

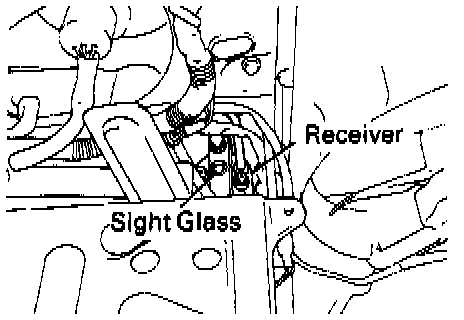

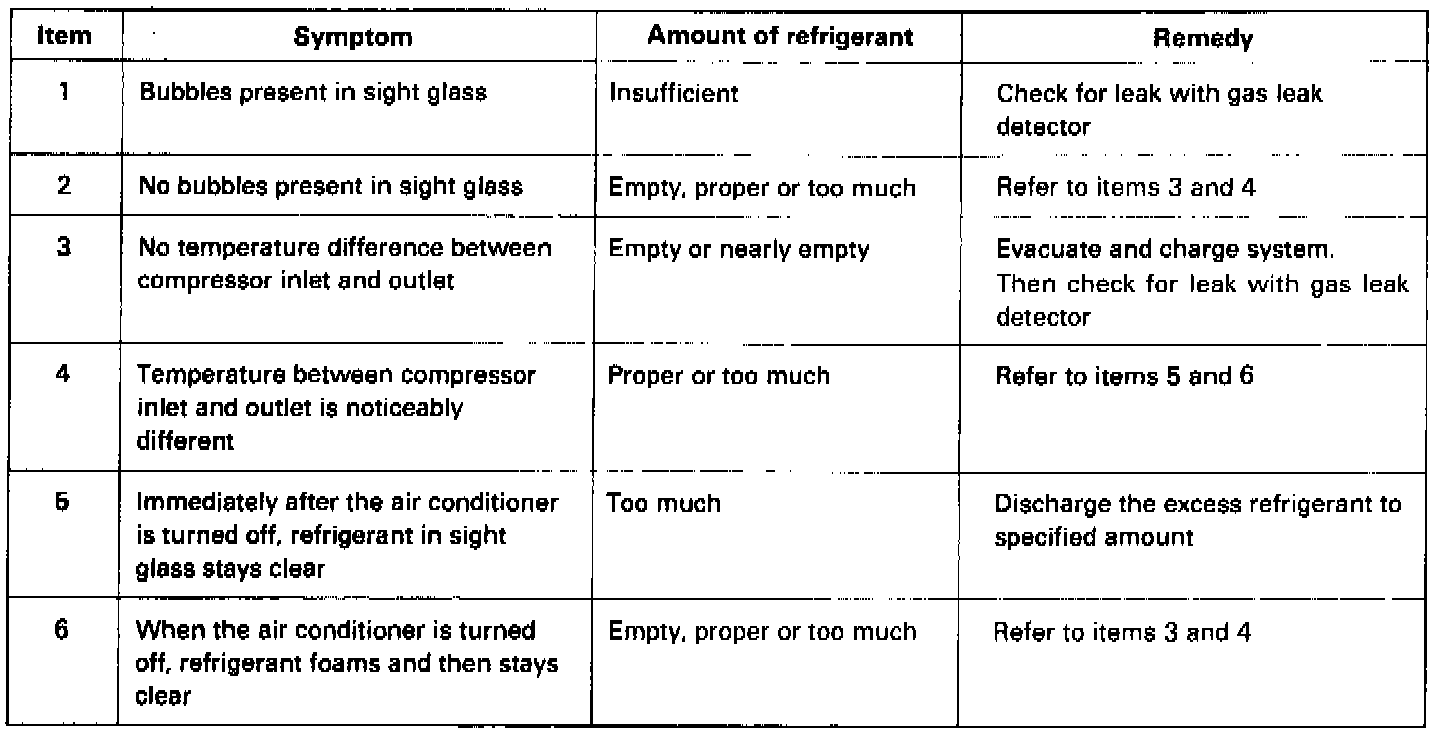

Check amount of
refrigerant
, observe the
sight glass
on the receiver.
