A/C - System Service/Inspection/Diagnosis
>>
Quick Checks of Refrigerant Volume
Quick Checks of Refrigerant Volume

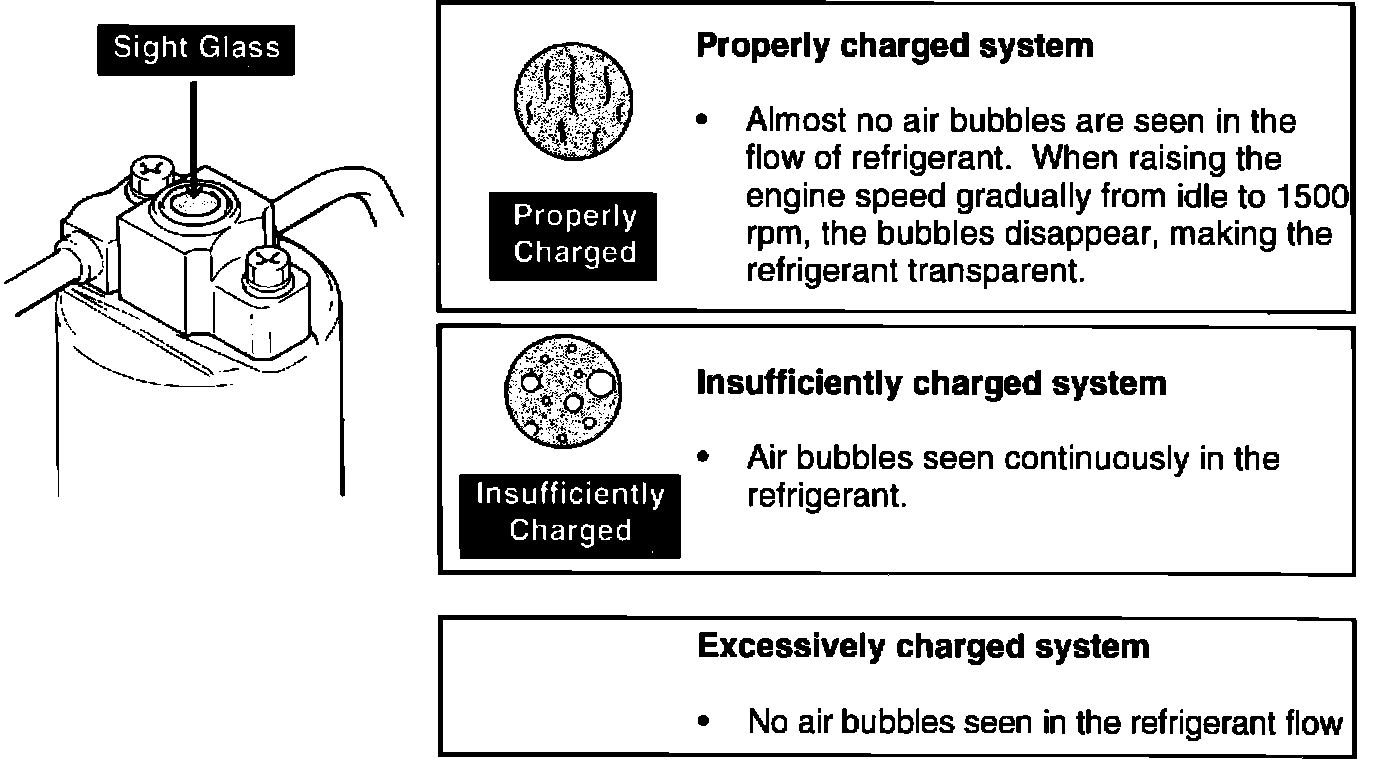

Inspect the condition of the
refrigerant
flowing through the
sight glass
, according to the indicators:
