Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Technical Service Bulletins >> All Technical Service Bulletins >> A/C - System Service/Inspection/Diagnosis >> Gas Leak Inspection >> 2. Outlet of Cooling Unit Drain Hose

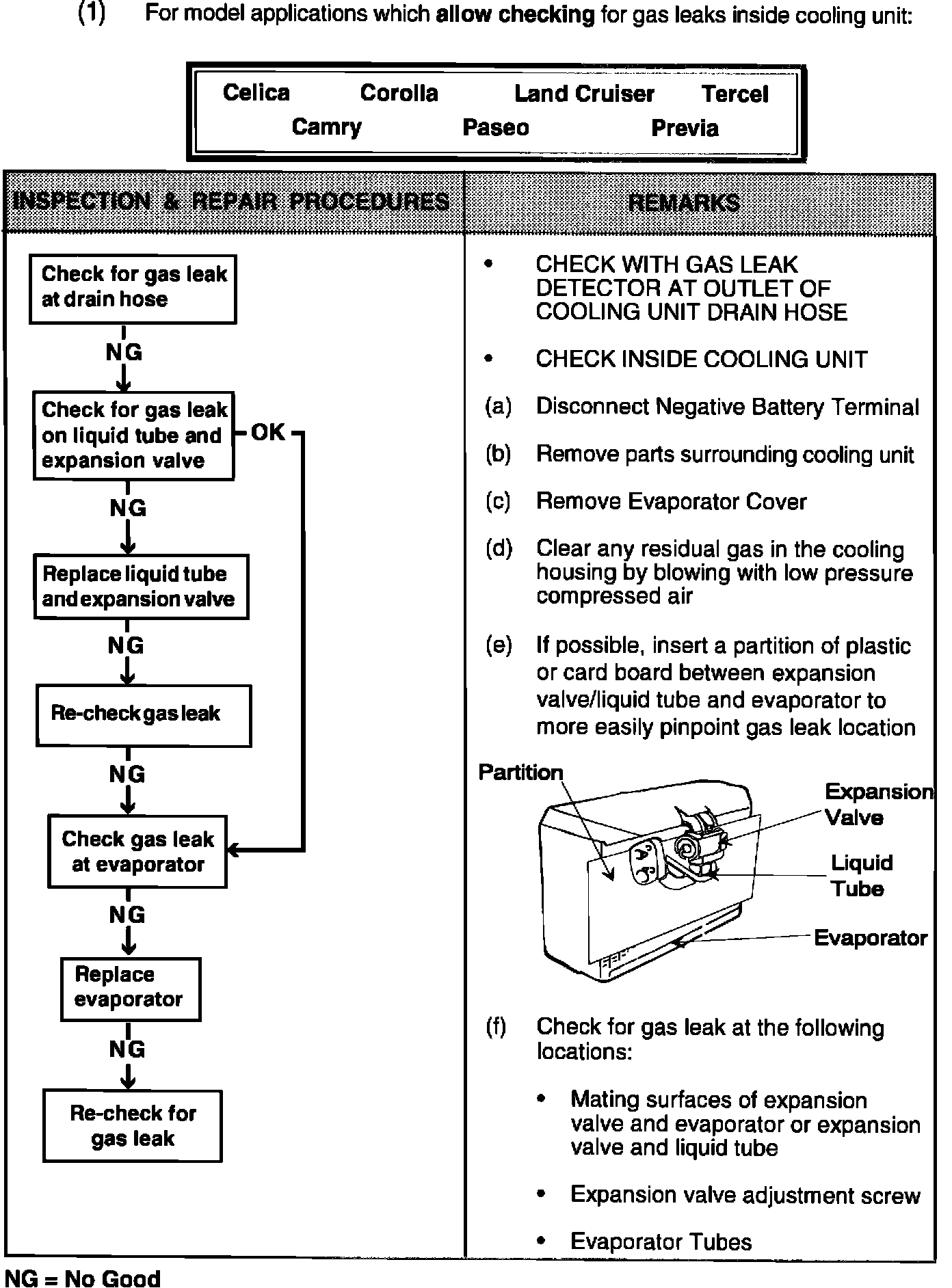

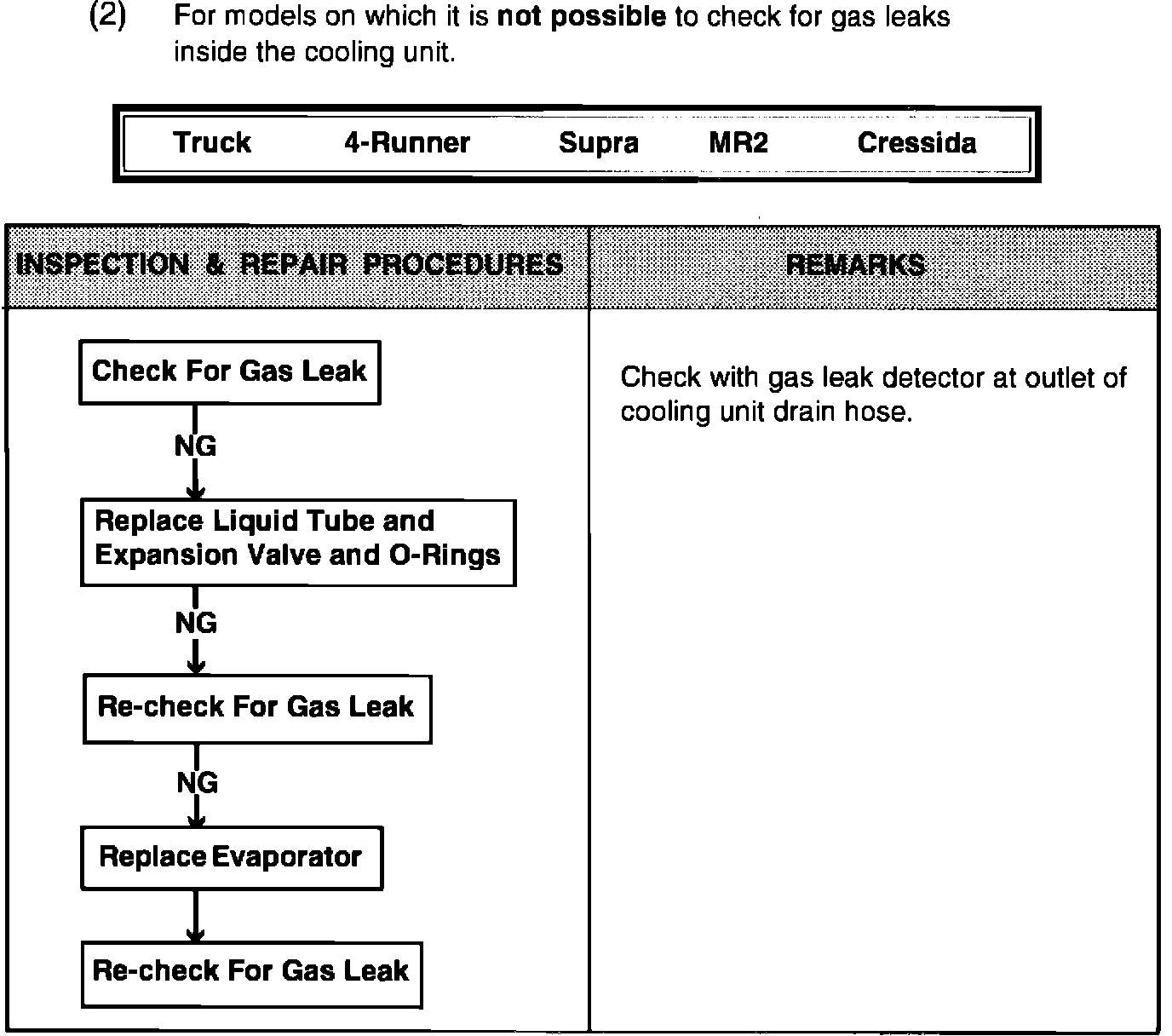

2. Outlet of Cooling Unit Drain Hose
