Relay "C"

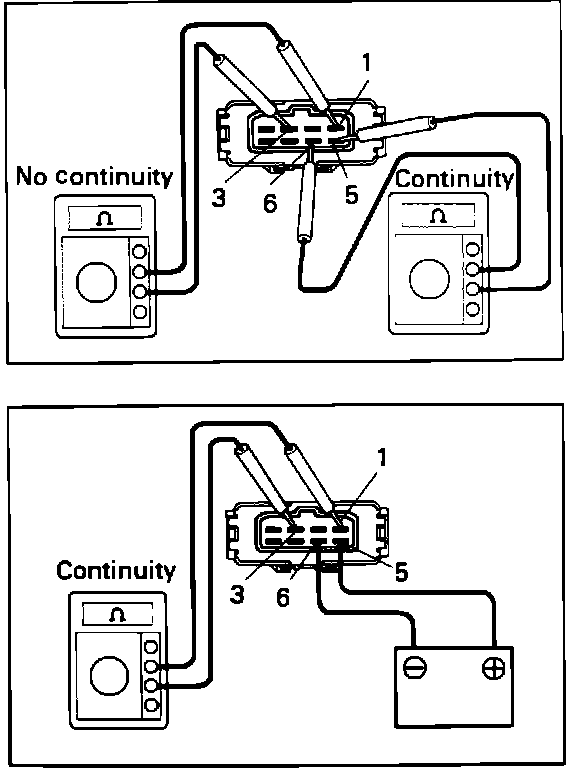

Relay "C" Testing:

CONTINUITY

1. Check that there is continuity between terminals 5 and 6.
2. Check that there is no continuity between terminals 1 and 3.
3. If continuity is not as specified, replace relay.

OPERATION

1. Apply battery voltage across terminals 5 and 6.
2. Check that there is continuity between terminals 1 and 3.
3. If operation is not as specified, replace relay.
