Receiver Dryer: Locations

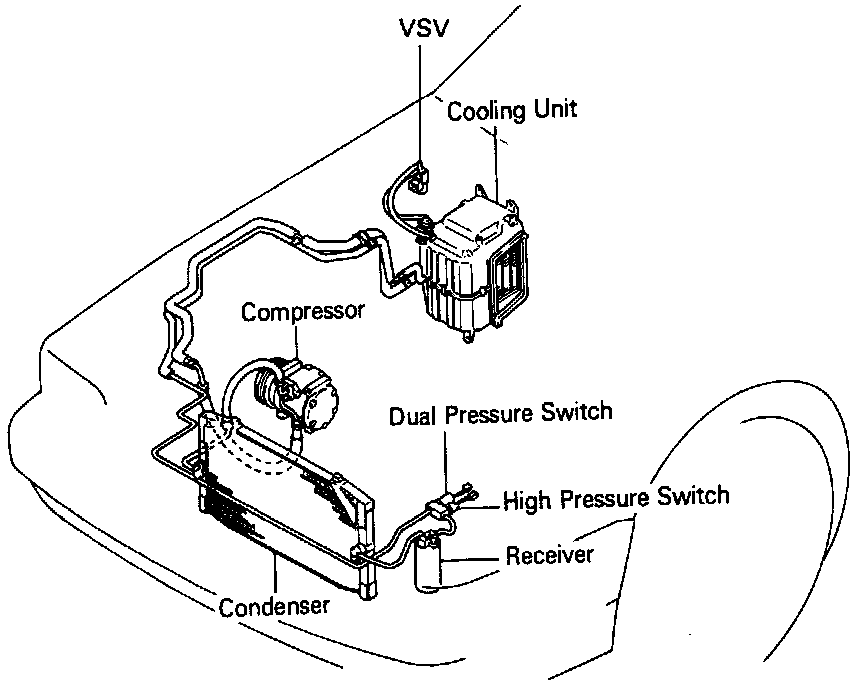

Underhood HVAC Component And Tubing Layout:






Located next to the condenser, driver's side of engine compartment.
