Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Fuse and Fusible Link Locations >> Interior

Interior

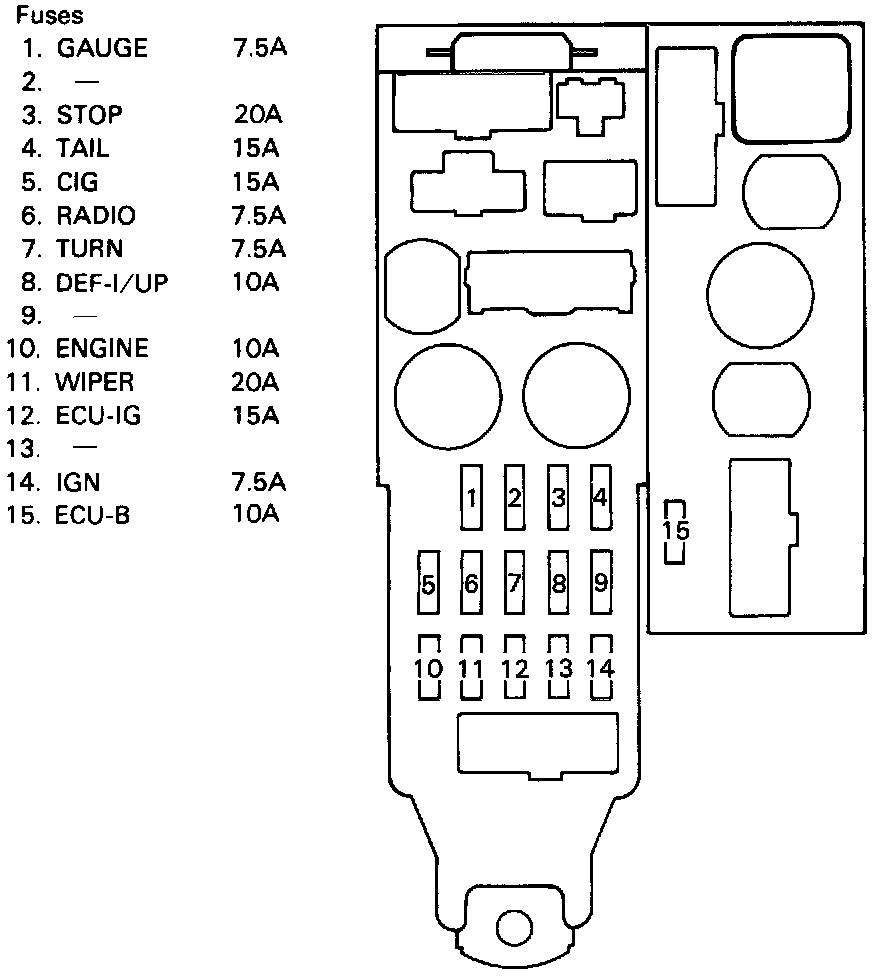

Fuse and relay box No. 1
Location: Driver's side kick panel
