Installation of Manifold Gauges

1. Close both hand valves of manifold gauge set.

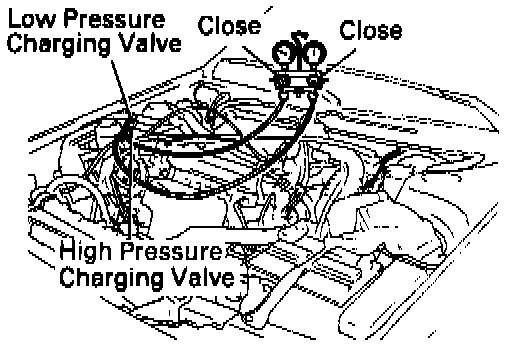

2. Install charging hoses of gauge set to charging valves. Connect the low pressure hose to the low pressure charging valve and the high pressure hose to the high pressure charging valve. Tighten the hose nuts by hand.

NOTE: Do not apply compressor oil to the seat of the connection.
