Recirc/Fresh Control Switch Operation

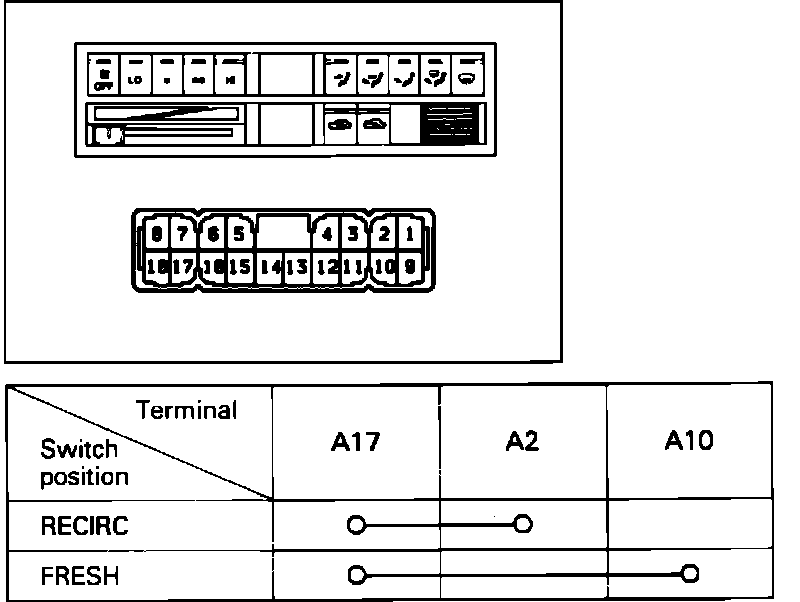

RECIRC/FRESH Control Switch Continuity:






1. Check switch continuity as shown on image chart.
2. If not as specified, replace switch.
