Air Vent Mode Switch Continuity

Air Vent Mode Switch Continuity:

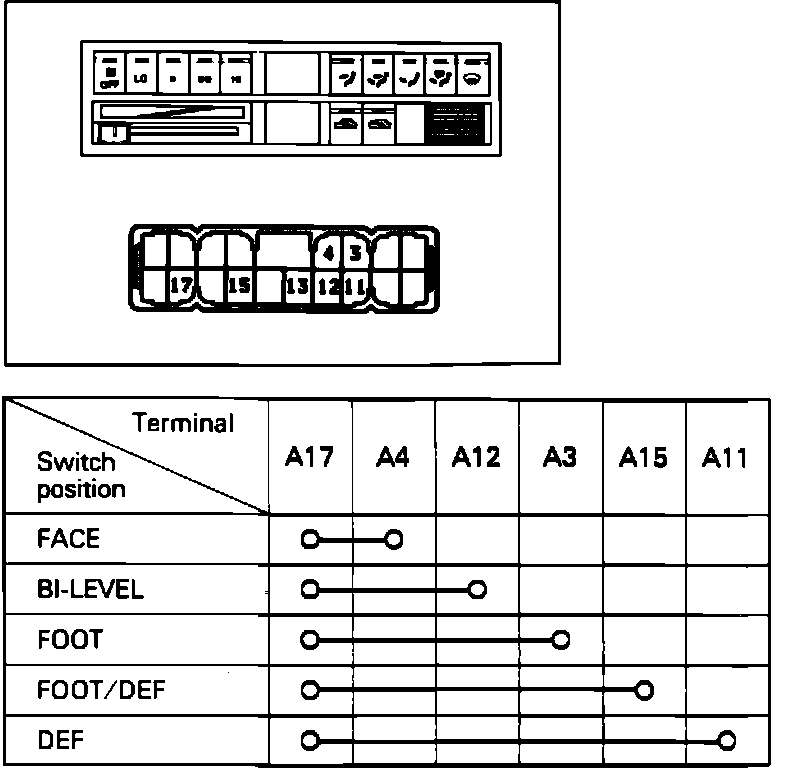

1. Check continuity as shown on image chart.
2. If not as specified, replace heater control assembly.
