Air Vent Mode Control

OPERATION

Air Vent Mode Control Servo Motor Operation:

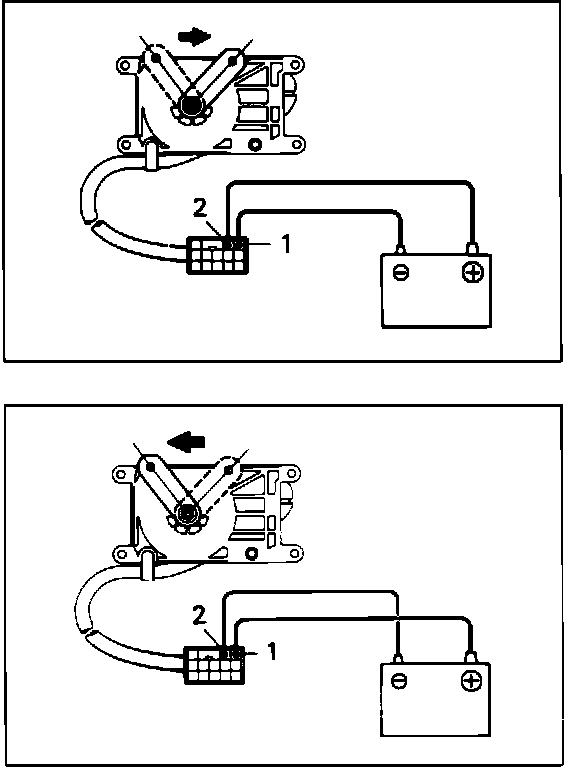

1. Connect battery positive to terminal 2 and negative to terminal 1. Check that lever moves smoothly from DEF to FACE.
2. Reverse battery connections. Check that lever moves smoothly from FACE to DEF.
3. If not as specified, replace servo motor.

RESISTANCE

Air Vent Mode Control Servo Motor Resistance:

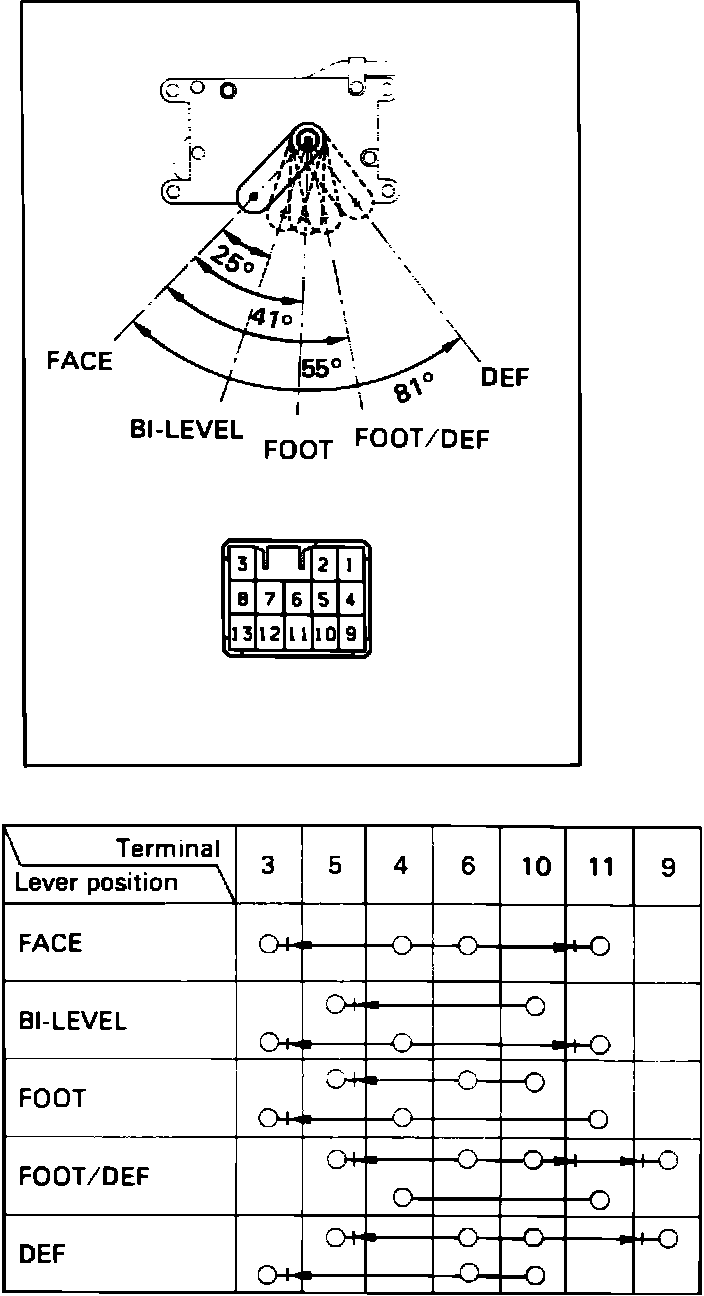

1. Check resistance as shown on image chart.
2. If not as specified, replace servo motor.
