Engine - Center Mount Modified

90toyota05 REFERENCE ENGINE
NUMBER 023
DATE 08-03-90
MODEL SV
TITLE 3S-FE CAMRY CENTER ENGINE MOUNTING BRACKET MODIFICATION

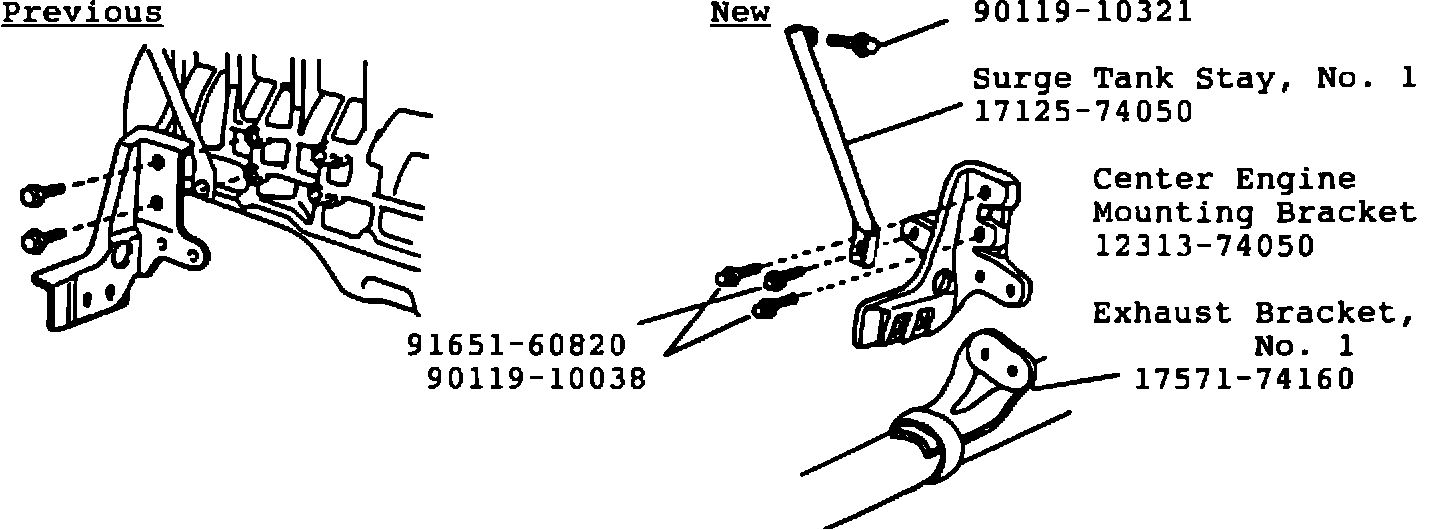

To decrease the potential for engine booming noise on 4 cylinder Camry's, the center engine mounting bracket and relevant parts have been changed as shown below.
PRODUCTION CHANGE: October 1989 - TMC, November 1989 - TMM
From VINS: JT2SV2 * * * L0325135 (TMC Assembly Plant code 0) JT2SV2 * * * L3407417 (TMC Assembly Plant code 3) 4T1SV21E6LU147900 (TMM-USA Assembly Plant)

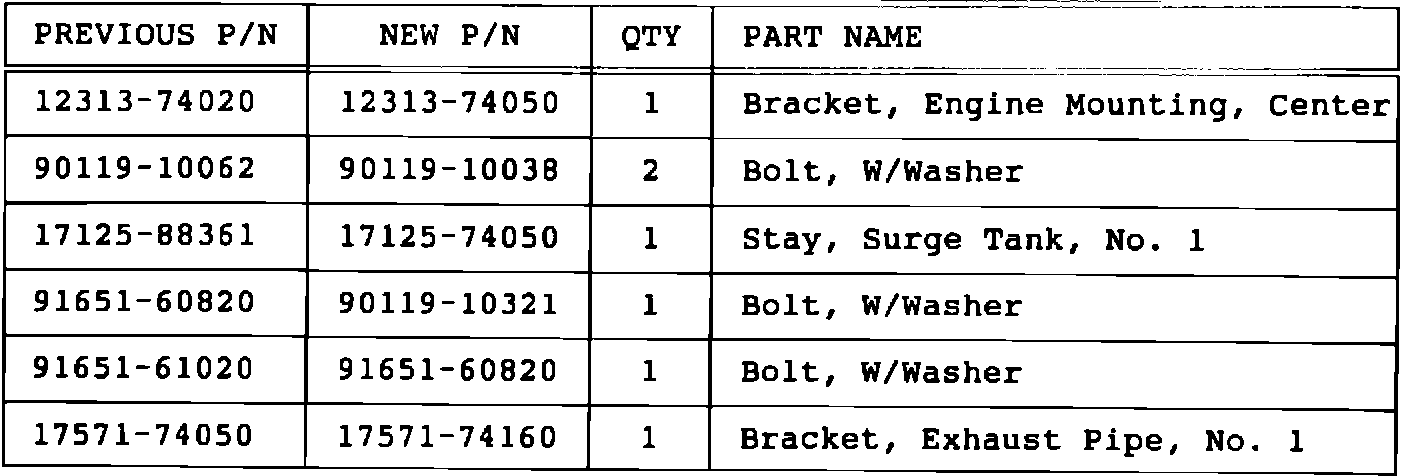

PART NUMBER INFORMATION:

The new parts can be installed as a complete set on previous vehicles. New vehicles (built after production change) should only use new parts.
