Engine - Balanceshaft Assembly Service

91toyota06

REF.: ENGINE


NO.: EN91-014


DATE: NOVEMBER 15, 1991


MODEL: SK

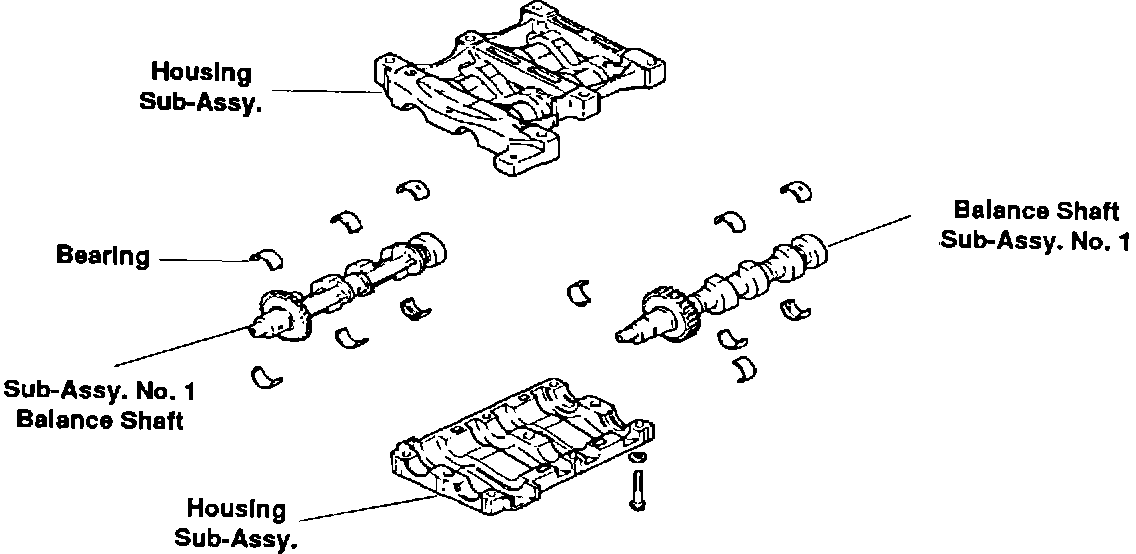

5S-FE BALANCESHAFT ASSEMBLY





When necessary to complete engine repairs, the balanceshaft must be serviced as an assembly only. The individual components for the 5S-FE Balanceshaft Assembly have been discontinued and are no longer available as a service part.


PRODUCTION EFFECTIVE: From: September, 1991

PART NUMBER INFORMATION:


PREVIOUS P/N NEW P/N DESCRIPTION
None 13620-74010 Balanceshaft Assy.


13601-79015 Discontinued *Balanceshaft Sub-Assy. No. 1

11507-74010 " Housing Sub-Assy.
1911-74010-01

1911-74010-05 " Bearing, Balanceshaft No. 1
11921-74010-01

11921-74010-05 " Bearing, Balanceshaft No. 2
11931-74010-01

11931-74010-05 " Bearing, Balanceshaft No. 3

*Previously available only as a matched set.
