Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Lamps and Indicators - Engine >> Oil Pressure Warning Lamp/Indicator >> Diagrams >> Electrical Diagrams

Electrical Diagrams

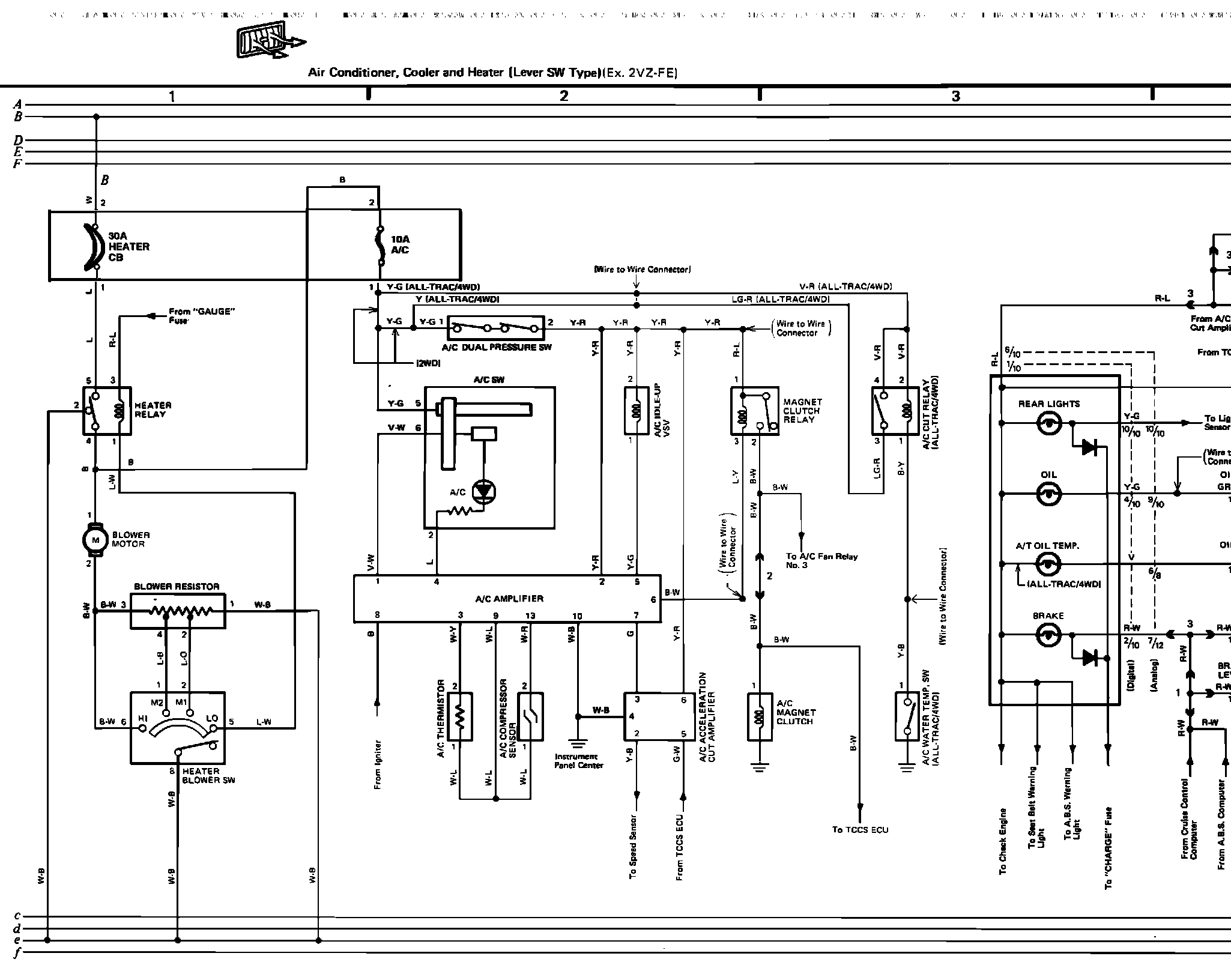

��y�FzAir Conditioning And Heater W/ Lever Switches, Instrument Cluster, Fuel Gauge, Oil Pressure Light, Water Temp. Gauge, Seat Belt And Idle Up Wiring Circuits:



Power Source:
