Engine Mount: Service and Repair

REMOVAL

RH MOUNTING STAY

(2WD) Remove the three bolts and mounting stay.

(4WD) Remove the bolt, nut, ground strap and mounting stay.

(A/T) LH MOUNTING STAY

(2WD) Remove the bolt, nut and mounting stay.

(4WD) Remove the two nuts and mounting stay.

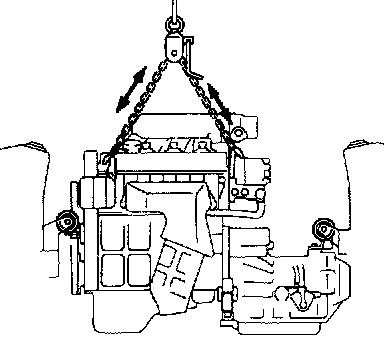

IF REMOVING ENGINE AND TRANSAXLE ASSEMBLY FROM VEHICLE, ATTACH THE ENGINE HOIST CHAIN TO THE ENGINE HANGERS

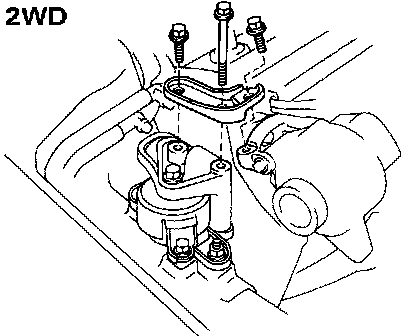

(2WD) Remove the bolt, four nuts and RH mounting insulator.

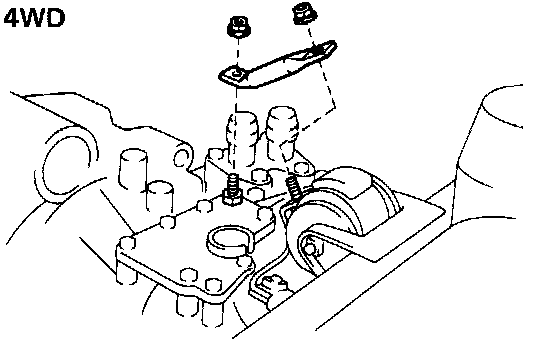

(4WD) Remove the through bolt, two nuts and RH mounting insulator.

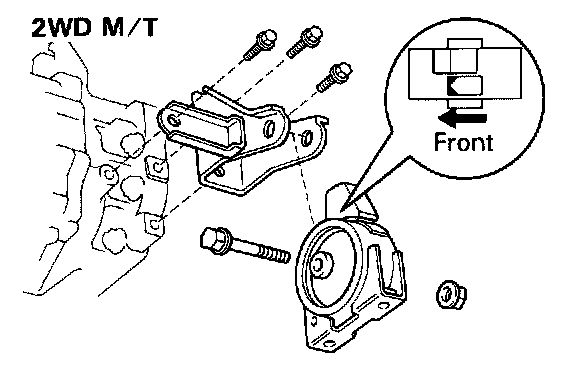

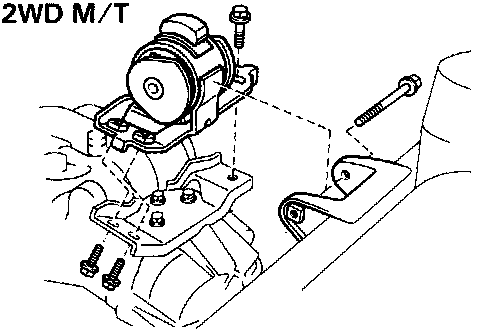

Remove the through bolt, three bolts (2WD, M/T), four bolts (Others) and LH mounting insulator.

Remove the three bolts and LH mounting bracket.

THE ENGINE AND TRANSMISSION ASSEMBLY MAY NOW BE LIFTED OUT OF THE VEHICLE.

INSTALLATION

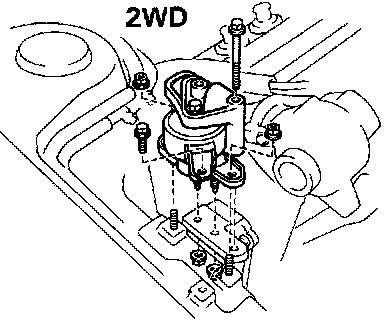

(2WD) Attach the RH mounting insulator to the mounting bracket and body, and temporarily install the bolt and nut.

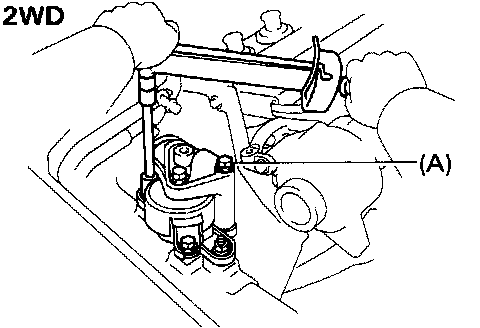

(2WD) Temporarily install the mounting stay bolt (A).

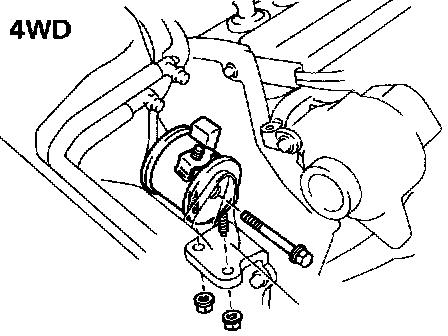

(4WD) Attach the RH mounting insulator to the mounting bracket and body, and temporarily install the through bolt and two nuts.

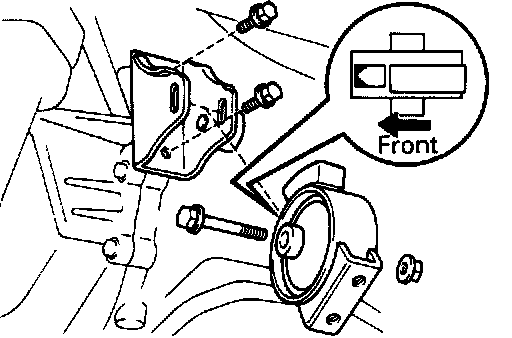

Install the LH mounting bracket to the transaxle case with the three bolts. Torque the bolts.

Torque: 530 kg-cm (38 ft-lb, 52 N-m)

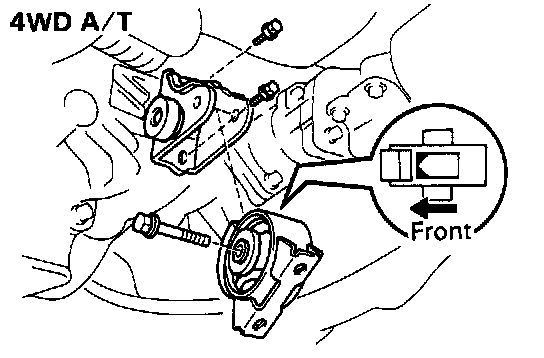

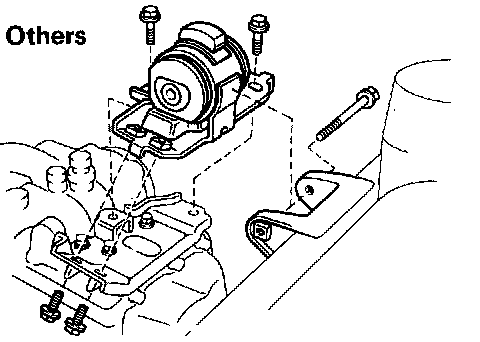

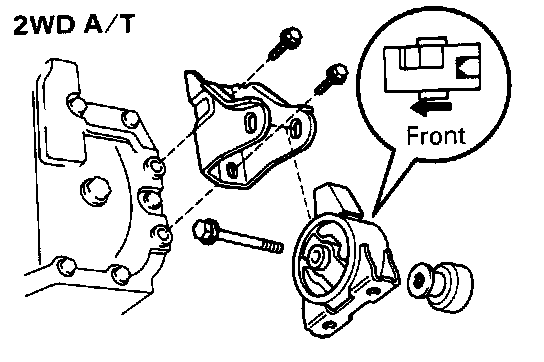

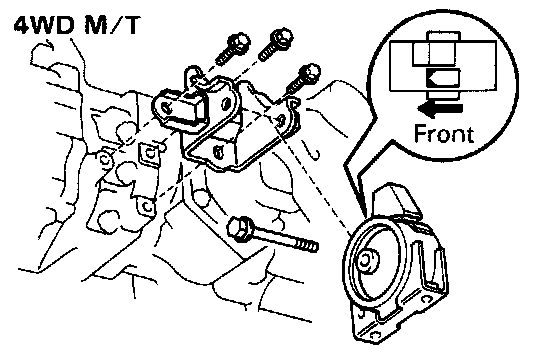

Attach the LH mounting insulator to the mounting bracket and body with the through bolt and three bolts (2WD M/T) or four bolts (Others), and install and torque the bolts.

Torque:
Bolt: 530 kg-cm (38 ft-lb, 52 N-m)
Through bolt: 890 kg-cm (64 ft-lb, 87 N-m)

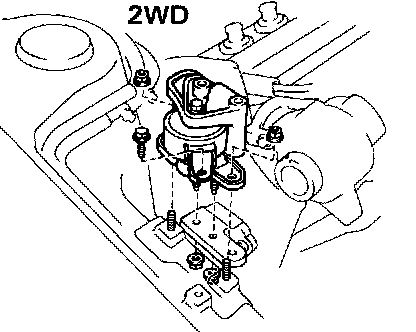

(2WD) Torque the bolt and four nuts of the RH mounting insulator. Do not torque the bolt (A) yet.

Torque:
Nut To bracket: 530 kg-cm (38 ft-lb, 52 N-m)
Nut To body: 900 kg-cm (65 ft-lb, 88 N-m)
Bolt: 650 kg-cm (47 ft-lb, 64 N-m)

(4WD) Torque the through bolt and two nuts of the RH mounting insulator.

Torque:
Nut: 530 kg-cm (38 ft-lb, 52 N-m)
Through bolt: 890 kg-cm (64 ft-lb, 87 N-m)

Remove the engine hoist chain from the engine.

INSTALL ENGINE RH MOUNTING STAY

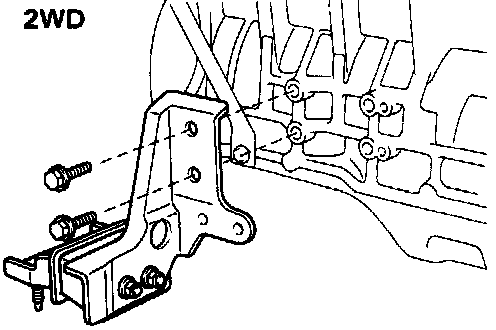

(2WD) Install the mounting stay with the three bolts. Torque the bolts.

Torque: 740 kg-cm (54 ft-lb, 73 N-m)

(4WD) Install the mounting stay with the bolt and nut. Torque the bolt and nut.

Torque: 740 kg-cm (54 ft-lb, 73 N-m)

(A/T) INSTALL ENGINE LH MOUNTING STAY

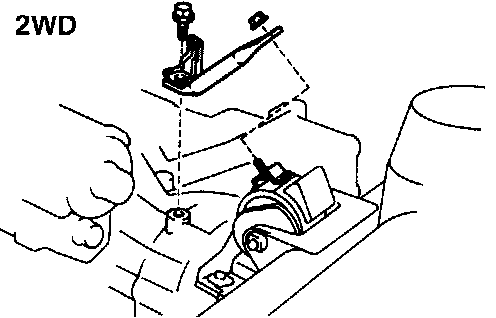

(2WD) Install the mounting stay with the bolt and nut. Torque the bolt and nut.

Torque: 210 kg-cm (15 ft-lb, 21 N-m)

(4WD) Install the mounting stay with the two nuts.

Torque: 210 kg-cm (15 ft-lb, 21 N-m)

INSTALL ENGINE FRONT MOUNTING BRACKET AND INSULATOR

Install the mounting bracket with the two bolts. Torque the bolts.

Torque: 790 kg-cm (57 ft-lb, 77 N-m)

Temporarily install the mounting insulator with the through bolt and nut.

(2WD) INSTALL ENGINE CENTER MOUNTING BRACKET AND INSULATOR ASSEMBLY

Install the mounting bracket and insulator assembly with the two bolts. Torque the bolts.

Torque: 490 kg-cm (35 ft-lb, 48 N-m)

INSTALL ENGINE REAR MOUNTING BRACKET AND INSULATOR

(M/T)

Install the mounting bracket with the three bolts. Torque the bolts.

Torque: 790 kg-cm (57 ft-lb, 77 N-m)

Temporarily install the mounting insulator with the through bolt and nut.

(2WD A/T)

Install the mounting bracket with the three bolts. Torque the bolts.

Torque: 790 kg-cm (57 ft-lb, 77 N-m)

Temporarily install the mounting insulator with the through bolt.

(4WD A/T)

Install the mounting bracket with the two bolts. Torque the bolts.

Torque: 790 kg-cm (57 ft-lb, 77 N-m)

Temporarily install the mounting insulator with the through bolt.

INSTALL ENGINE MOUNTING CENTER MEMBER

Install the engine mounting center member with the four bolts. Torque the bolts.

Torque: 400 kg-cm (29 ft-lb, 39 N-m)

Install and torque the four bolts and two nuts (2WD) holding the mounting insulators to the center member.

Torque:
Nut 490 kg-cm (35 ft-lb, 48 N-m)
Bolt 740 kg-cm (54 ft-lb, 73 N.m)

Torque the mounting insulator through bolts (front and rear.)

Torque: 890 kg-cm (64 ft-lb, 87 N-m)
