Assembly

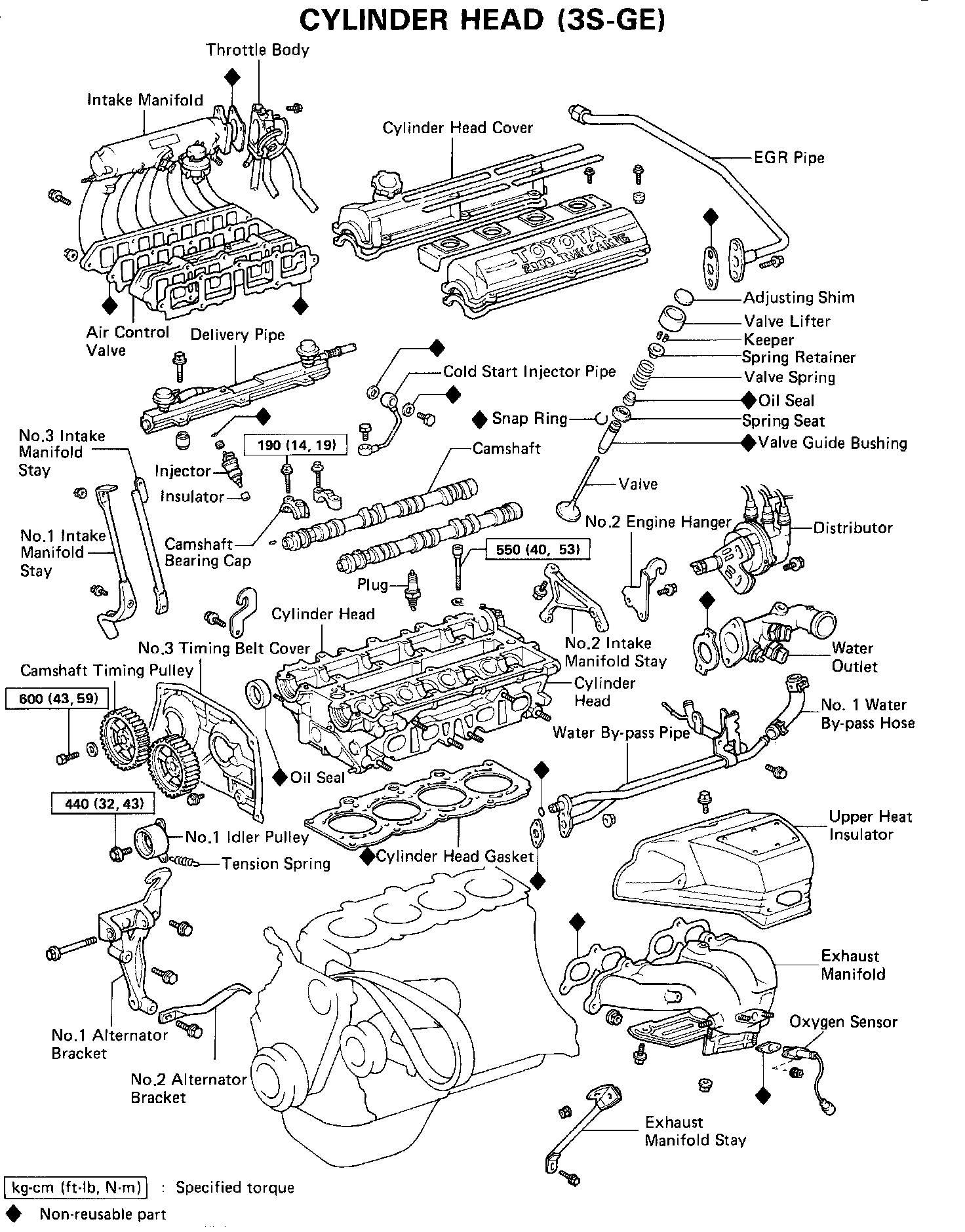

ASSEMBLY OF CYLINDER HEAD
NOTE:
- Thoroughly clean all parts to be assembled.
- Before installing the parts, apply new engine oil to all sliding and rotating surfaces.
- Remove all gaskets and oil seals with new ones.
1. INSTALL VALVES






(a) Install a new oil seal.

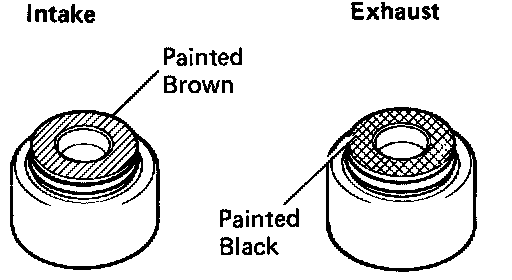

NOTE:The intake valve oil seal is brown and the exhaust valve oil seal is black.






(b) Install the valve, spring seat, spring and spring retainer.

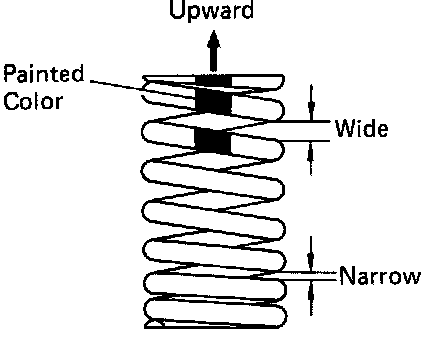

NOTE: Install the spring with the correct direction as shown.

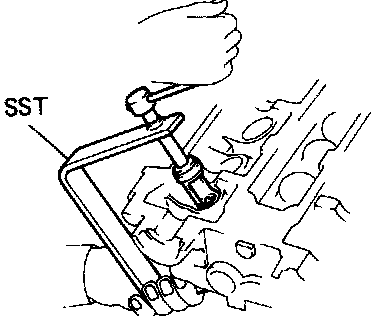

(c) Using SST, compress the valve spring and place the two keepers around the valve stem. SST 09202-70010

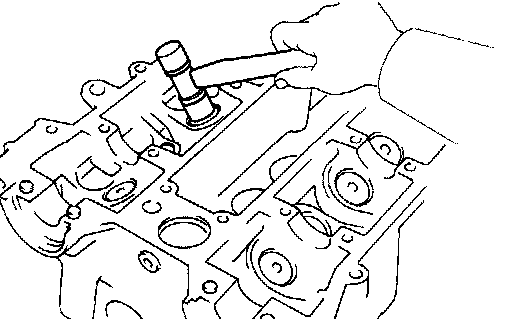

(d) Using a plastic-faced hammer, lightly tap the valve stem tip to assure proper fit.
2. INSTALL VALVE LIFTERS AND SHIMS

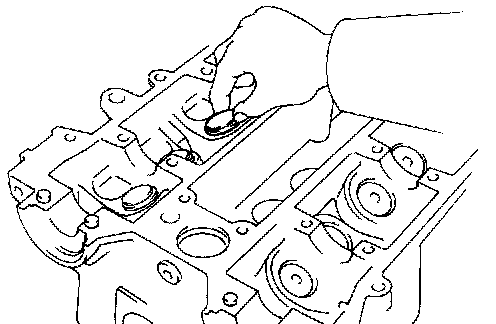

(a) Install the valve lifter and shim.
(b) Check the valve lifter rotates smoothly by hand
