Fuel Pressure Release: Service and Repair

FUEL PRESSURE RELEASE
- Disconnect the cable from the negative (-) terminal of the battery.
- Disconnect the cold start injector connector.
- Put a suitable container or shop towel under the cold start injector pipe.

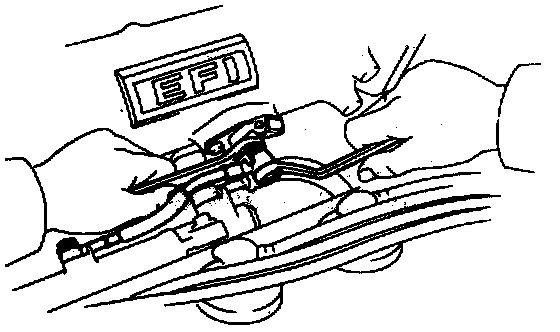

- Slowly loosen the union bolt on the cold start injector.

- Retighten cold start injector union bolt.
Torque: 180 kg.cm (13 ft.lb, 18 N.m)

- Wipe off any splattered gasoline.
- Reconnect the battery negative (-) cable.
