Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Timing Components >> System Diagram

System Diagram

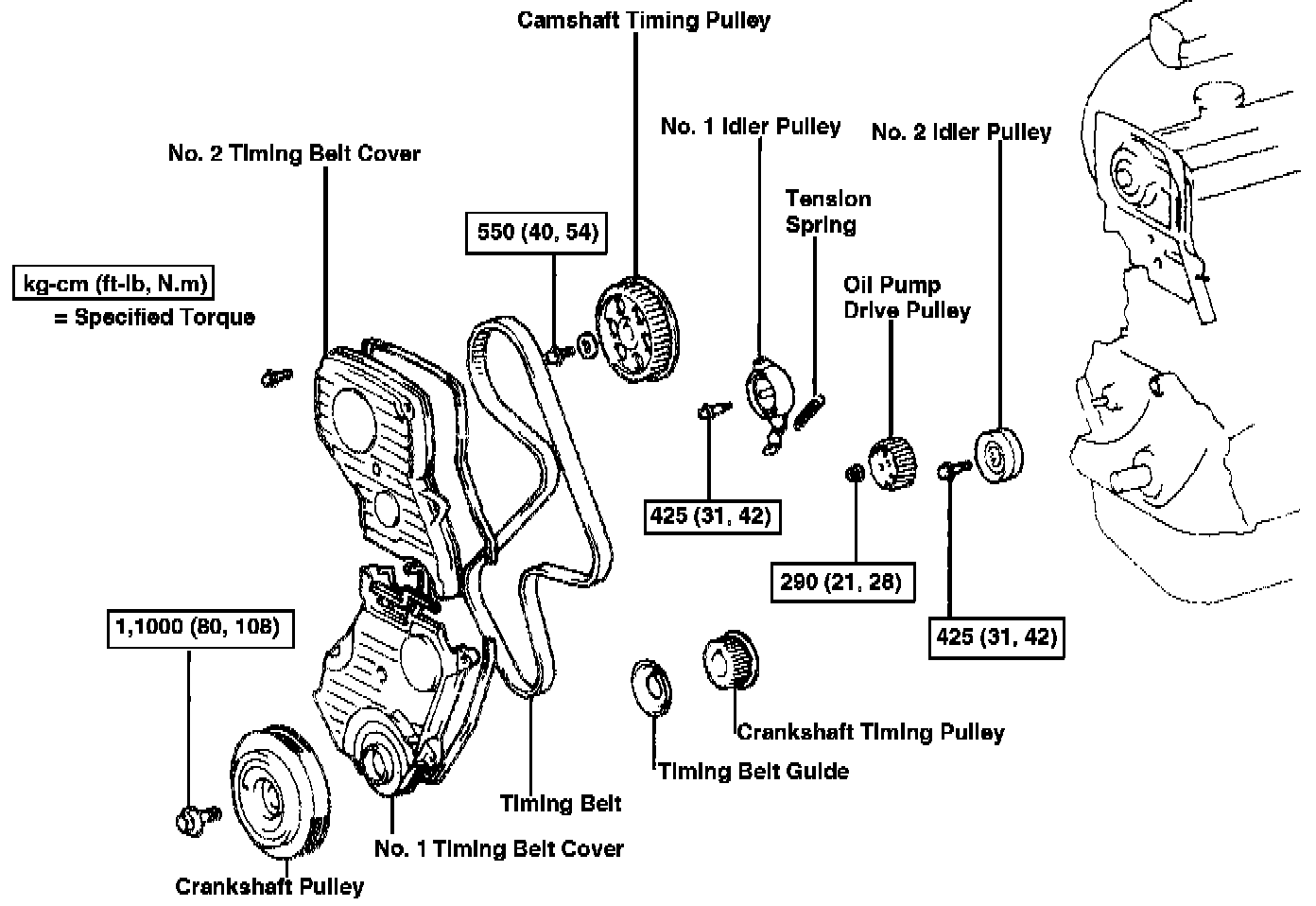

Timing Belt (3S-FE):
