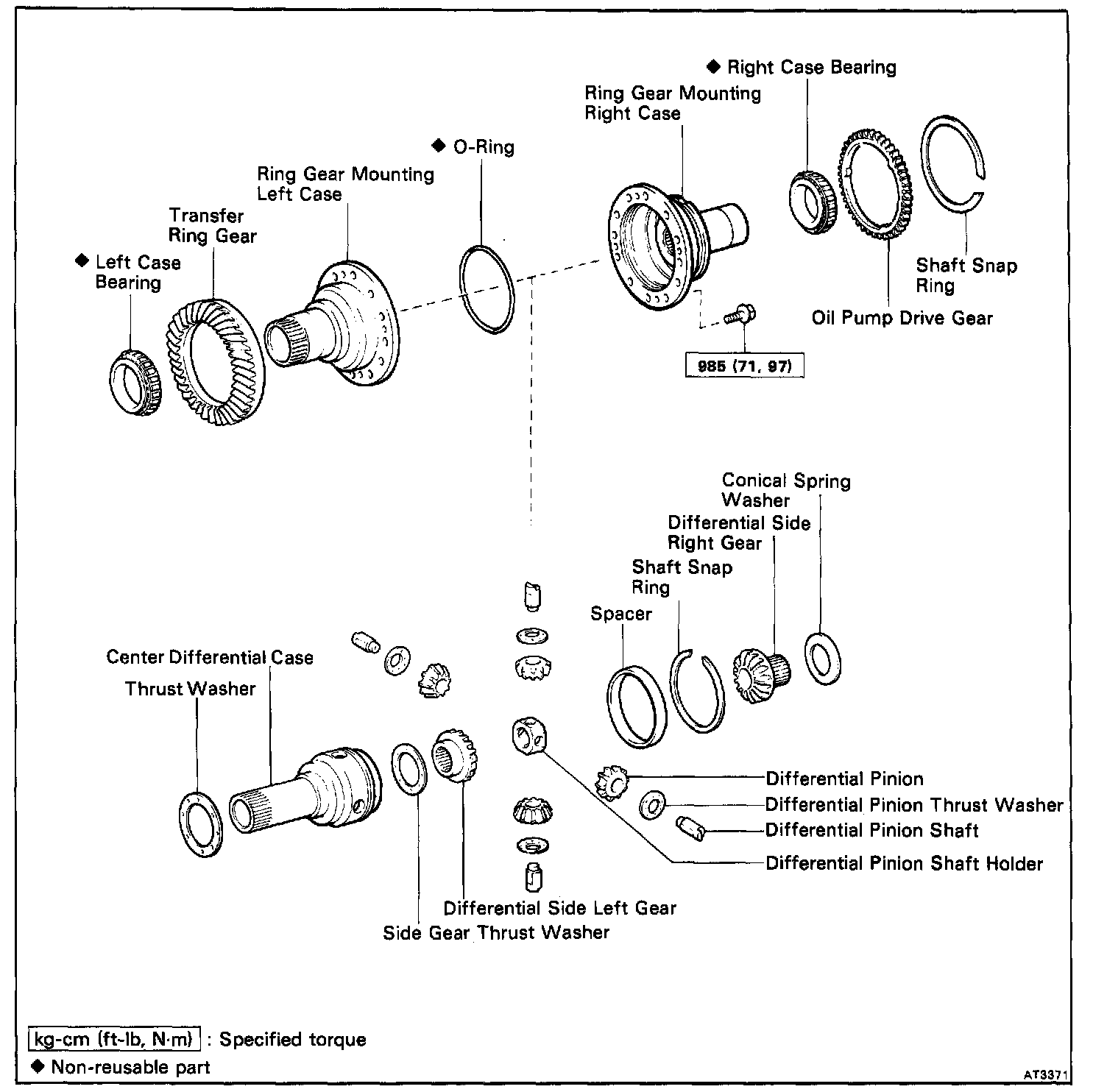

Ring Gear Mounting Case and Center Differential Case
Ring Gear Mounting Case and Center Differential Case
