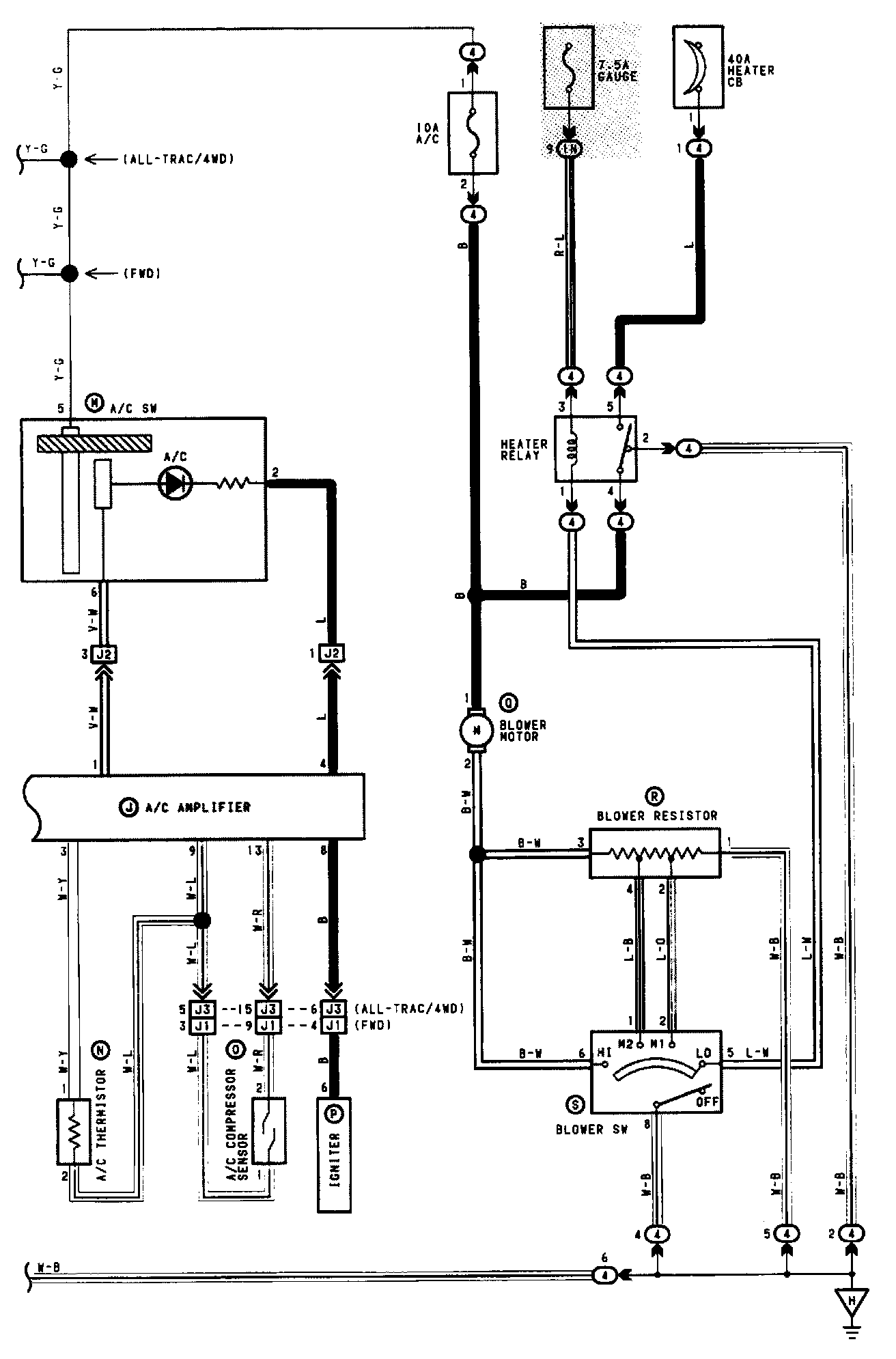

RADIATOR FAN AND AIR CONDITIONER (LEVER SWITCH TYPE) - Part 1 Of 2:
RADIATOR FAN AND AIR CONDITIONER (LEVER SWITCH TYPE) - Part 2 Of 2:
