Camry Sedan 4WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnosis By Symptom Chart
Diagnosis By Symptom Chart

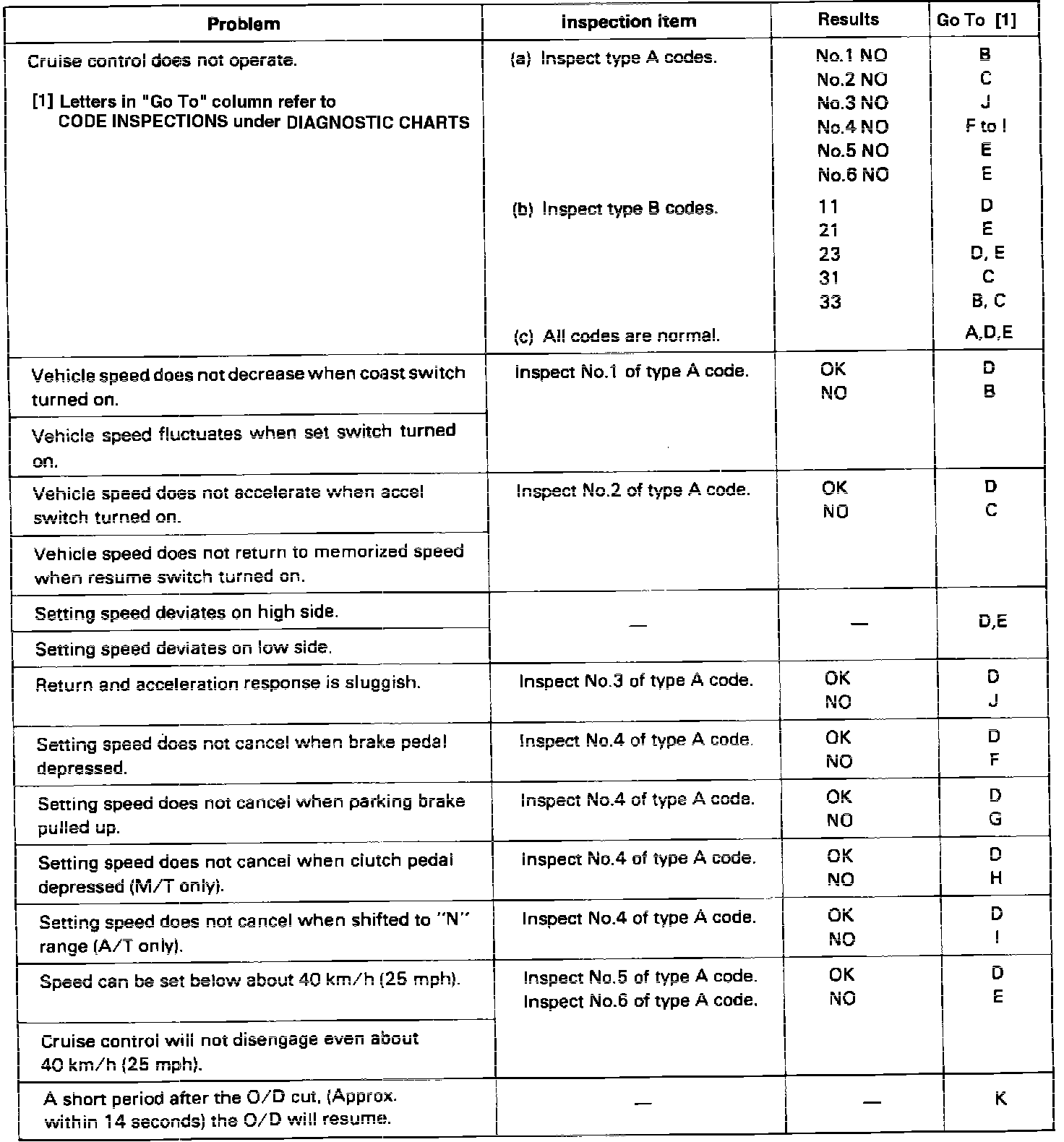

Troubleshooting Chart:
Letters in
"Go To"
column refer to
CODE INSPECTIONS
under
DIAGNOSTIC CHARTS.
