Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Code Inspections >> Section J -- Vacuum Circuit

Section J -- Vacuum Circuit

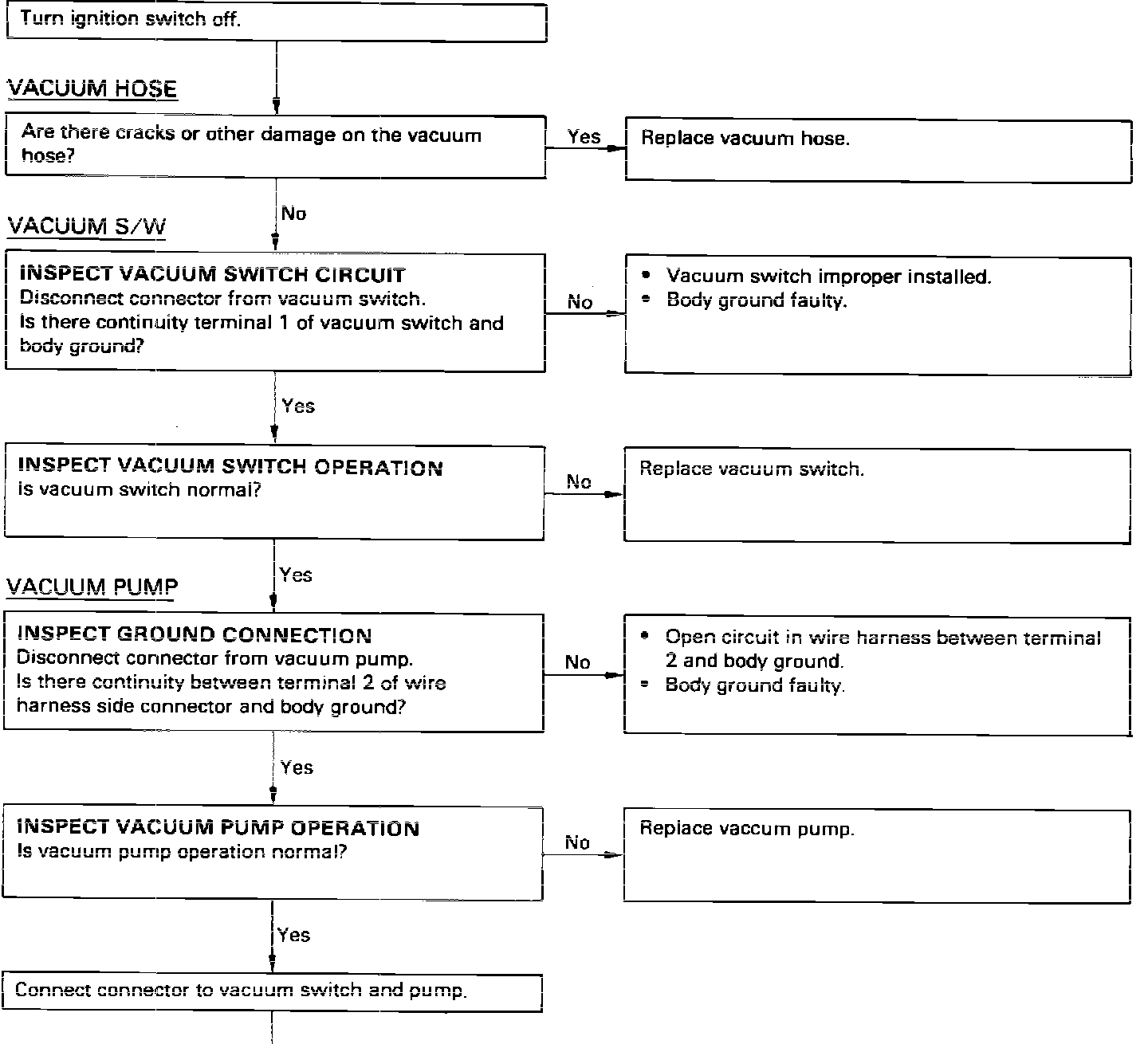

Vacuum Circuit Inspection (Part 1):

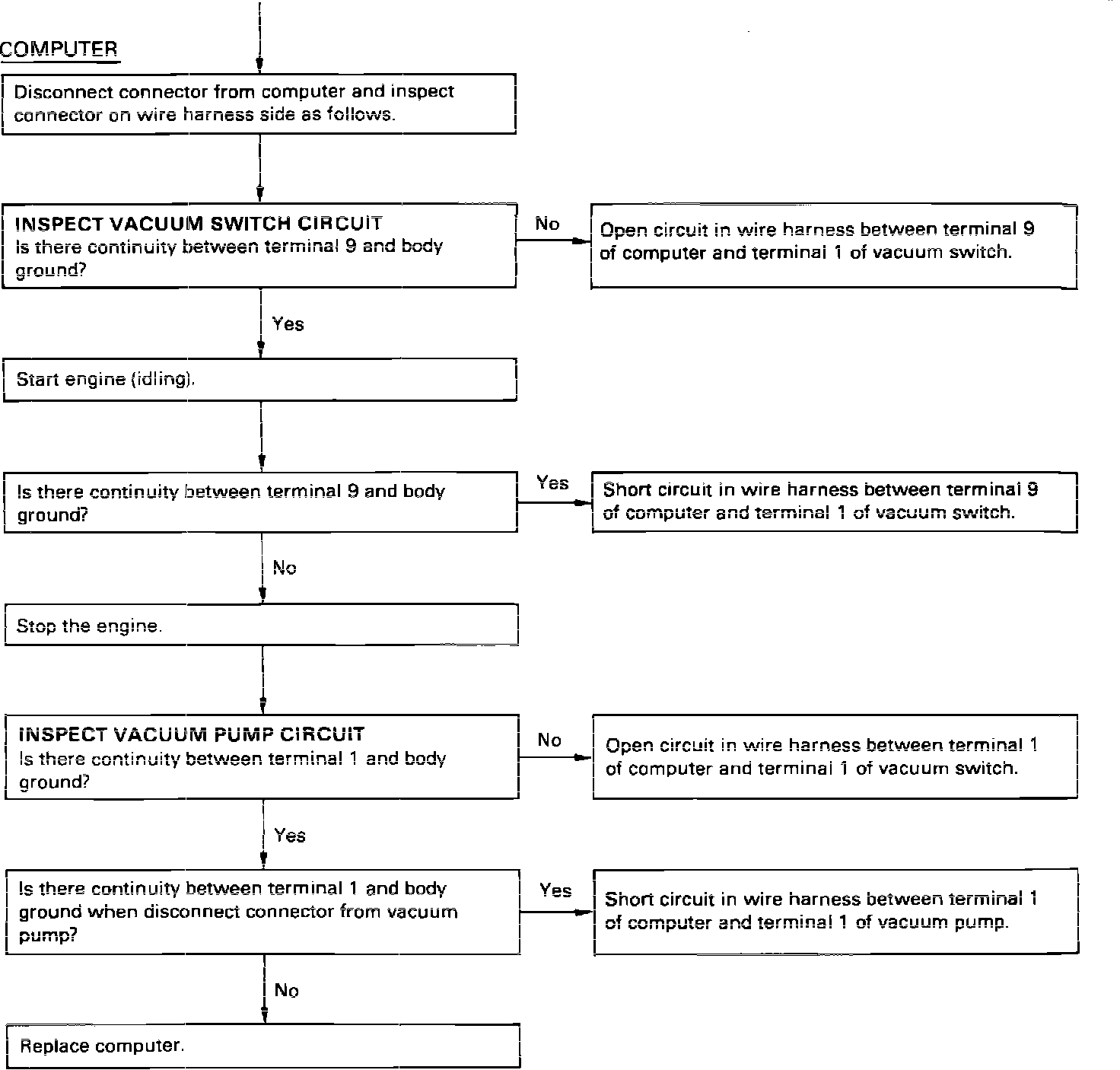

Vacuum Circuit Inspection (Part 2):
