Section I -- Neutral Start Switch Circuit
Section I -- Neutral Start Switch Circuit

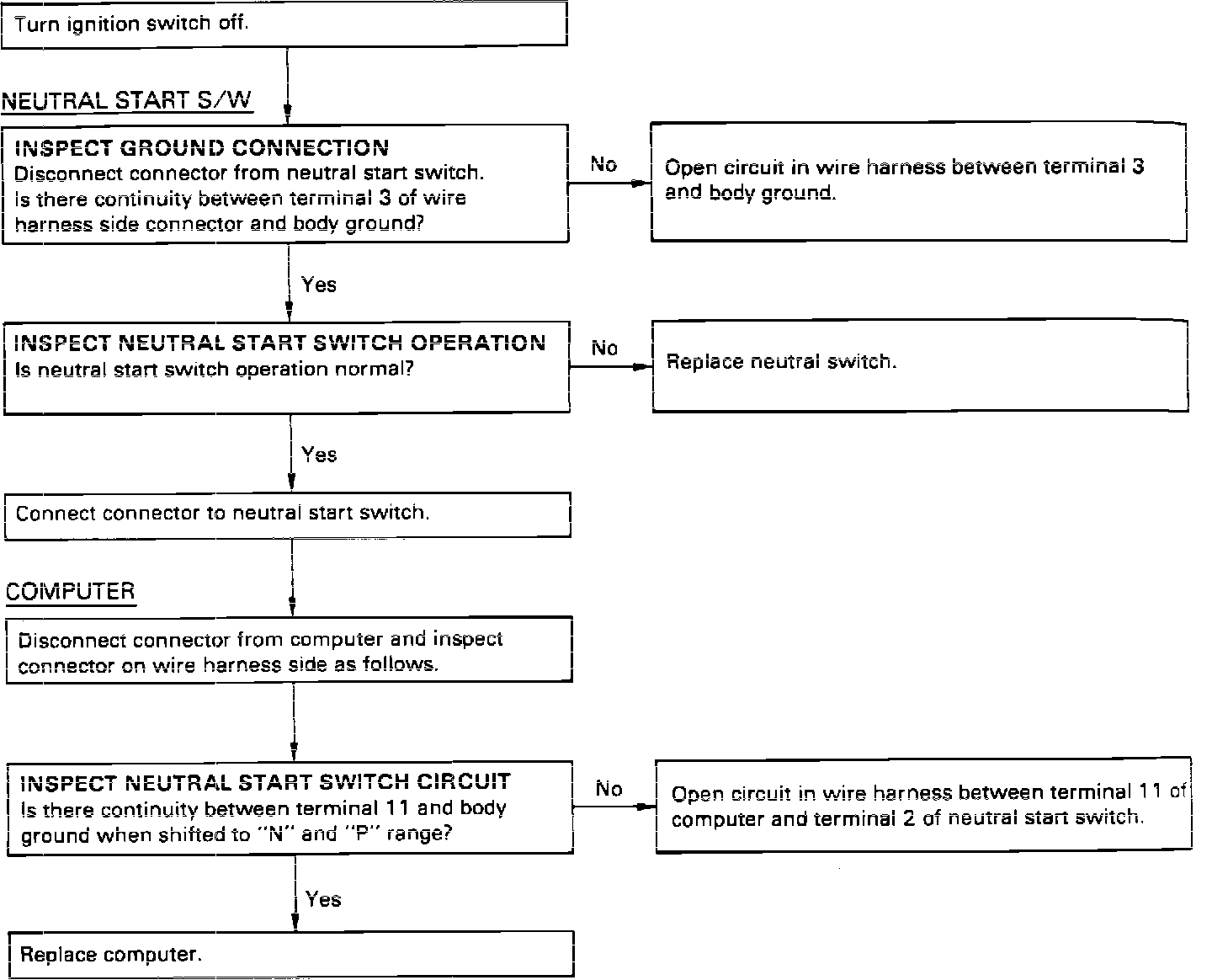

Neutral Start Switch Circuit Inspection:
