Home
>>
Toyota
>>
1989
>>
Camry Sedan 4WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Code Inspections
>>
Section G -- Parking Brake Switch Circuit
Section G -- Parking Brake Switch Circuit

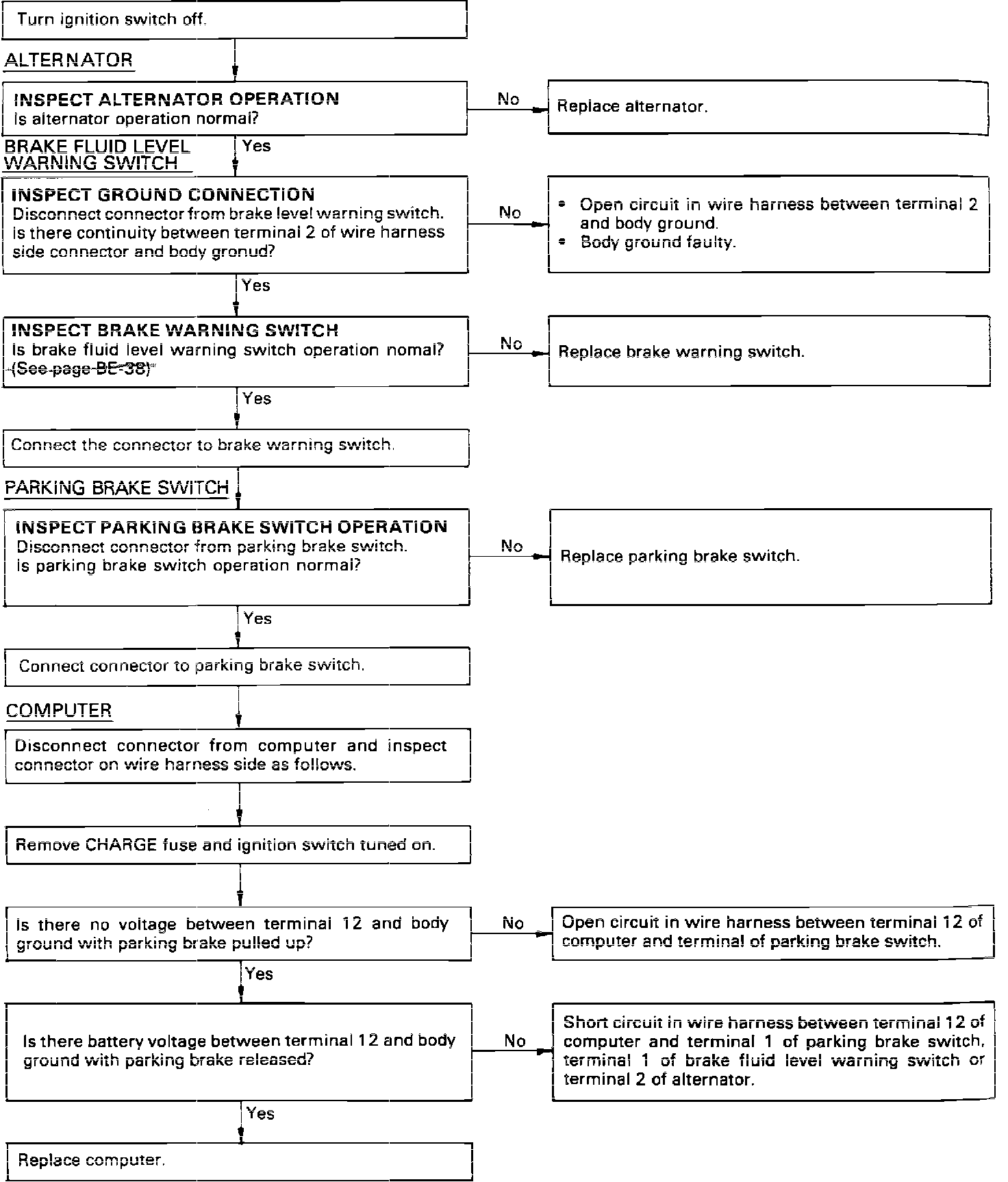

Parking Brake Switch Circuit Inspection:
