Section F -- Stop Light Switch Circuit
Section F -- Stop Light Switch Circuit

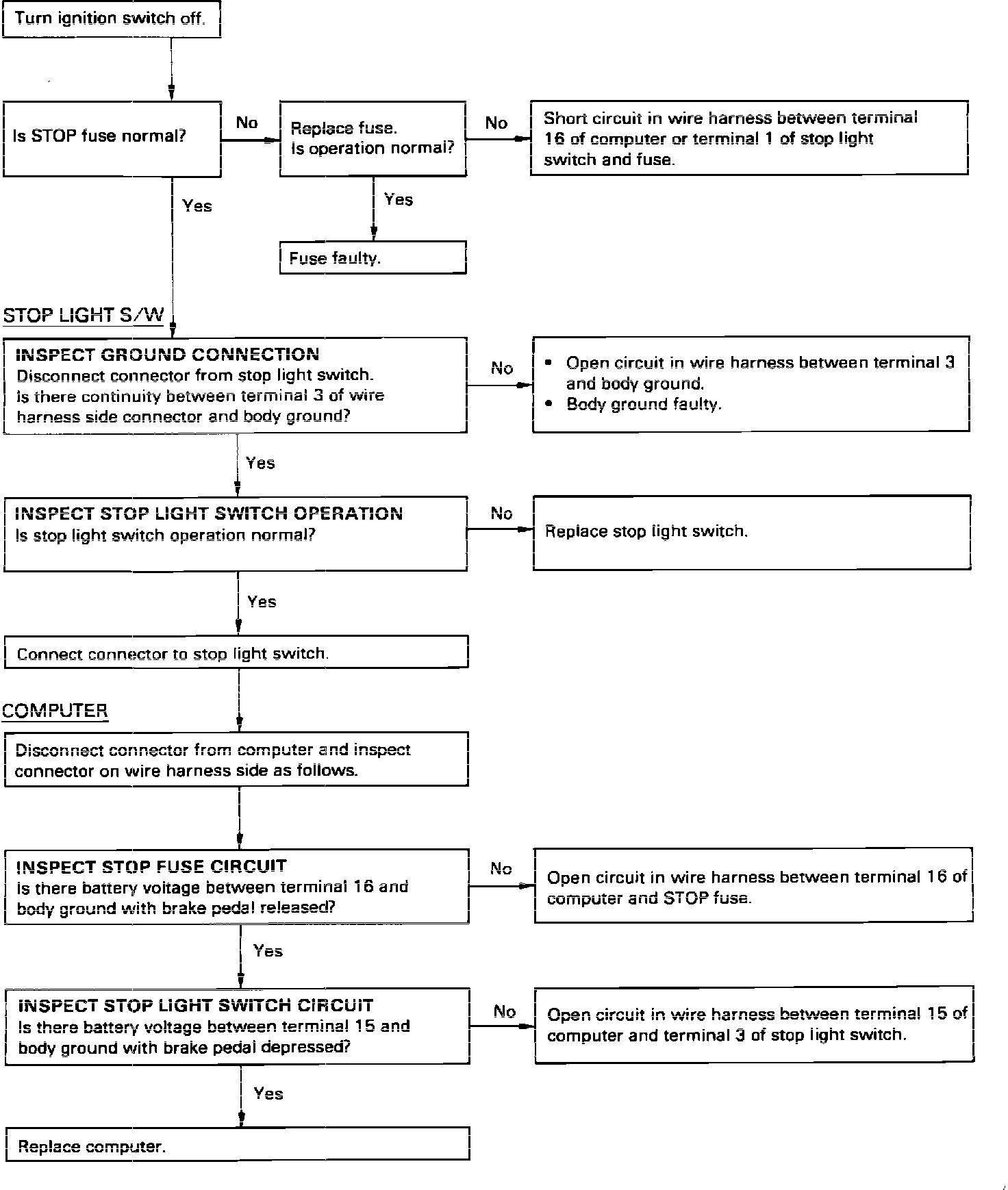

Stop Light Switch Circuit Inspection:
