Section E -- Speed Sensor Circuit
Section E -- Speed Sensor Circuit

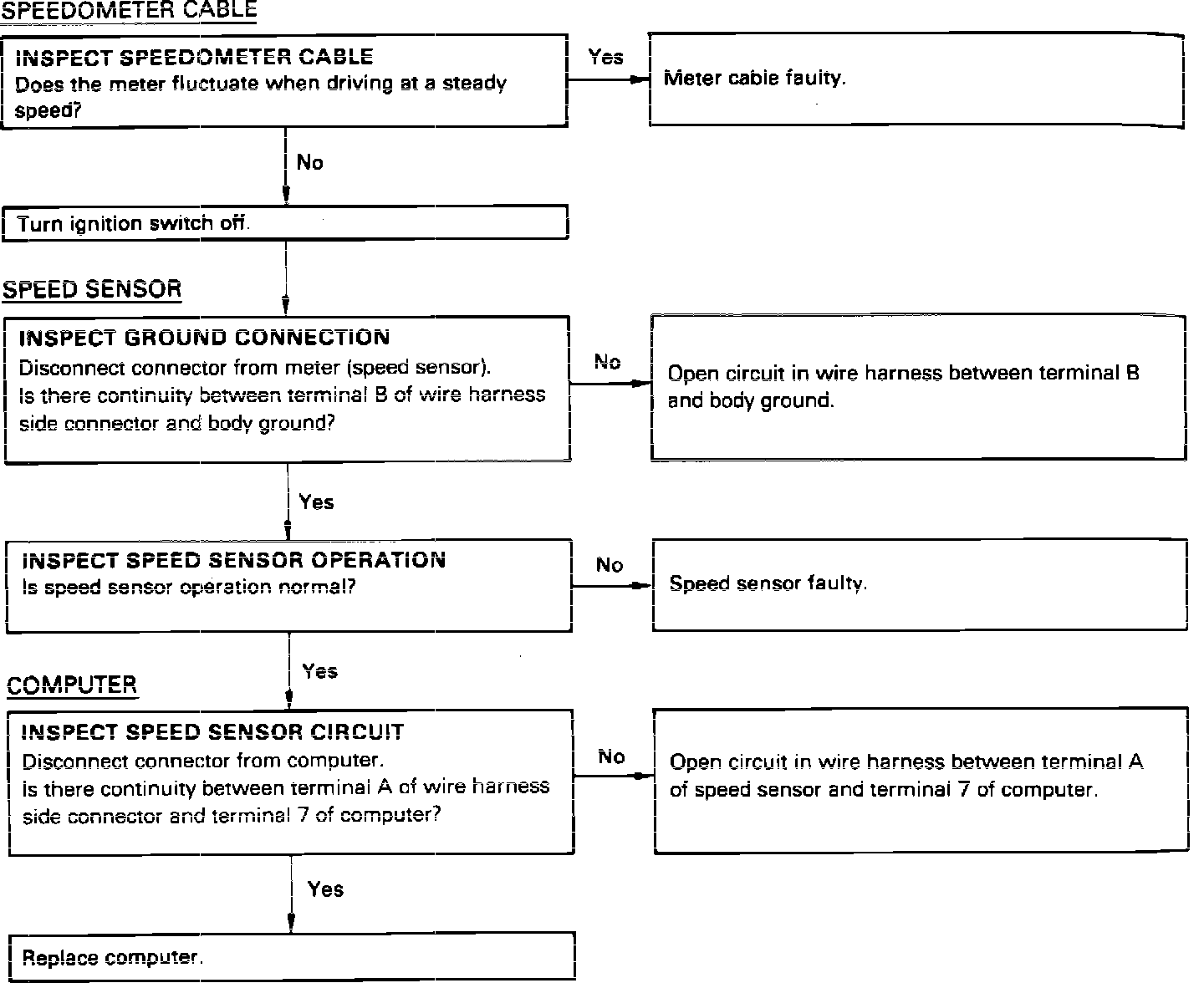

Speed Sensor Circuit Inspection:
