Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Code Inspections >> Section C -- Resume/Accel Switch Circuit

Section C -- Resume/Accel Switch Circuit

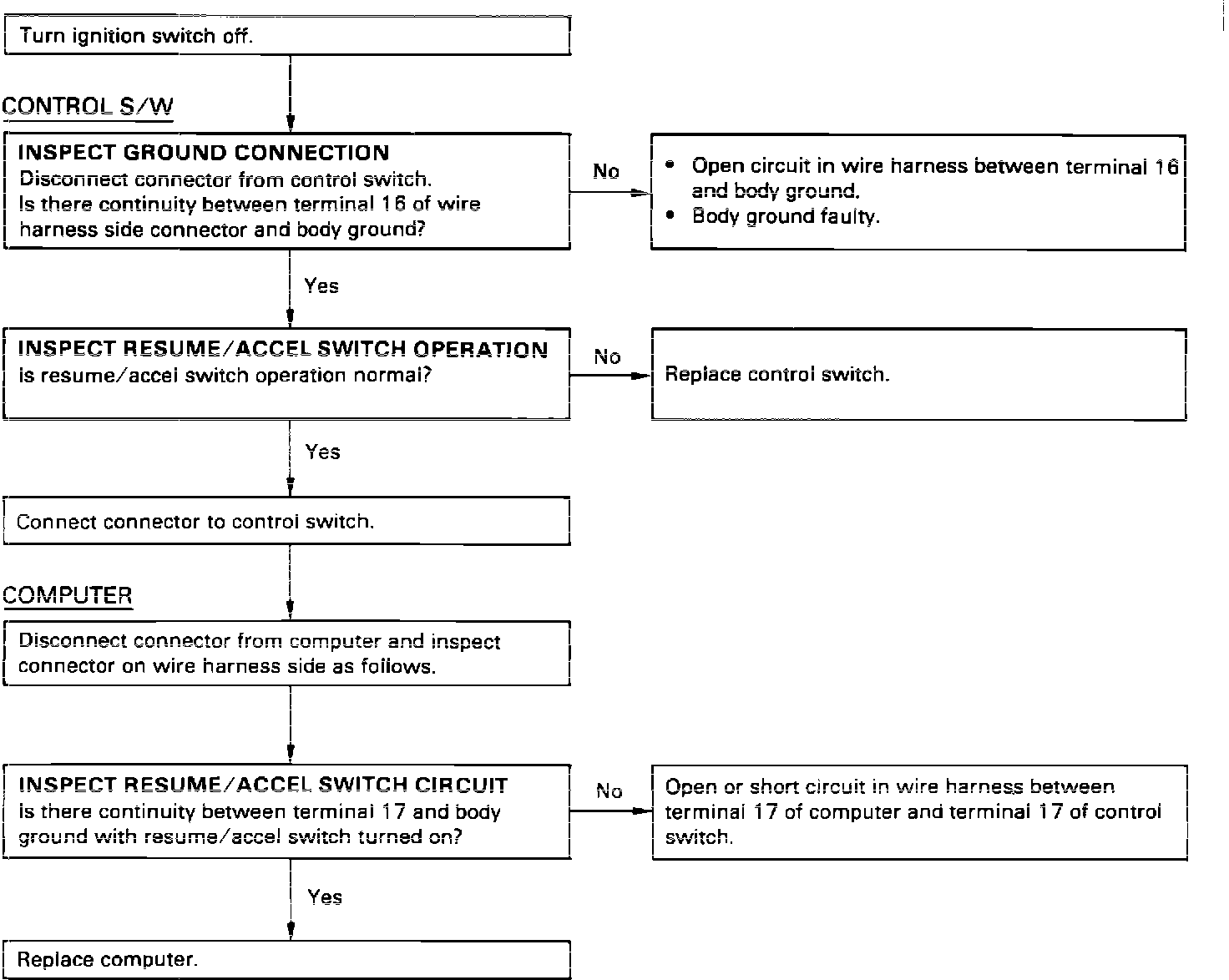

Resume/Accel Switch Circuit Inspection:
