Section A -- Power Source Circuit

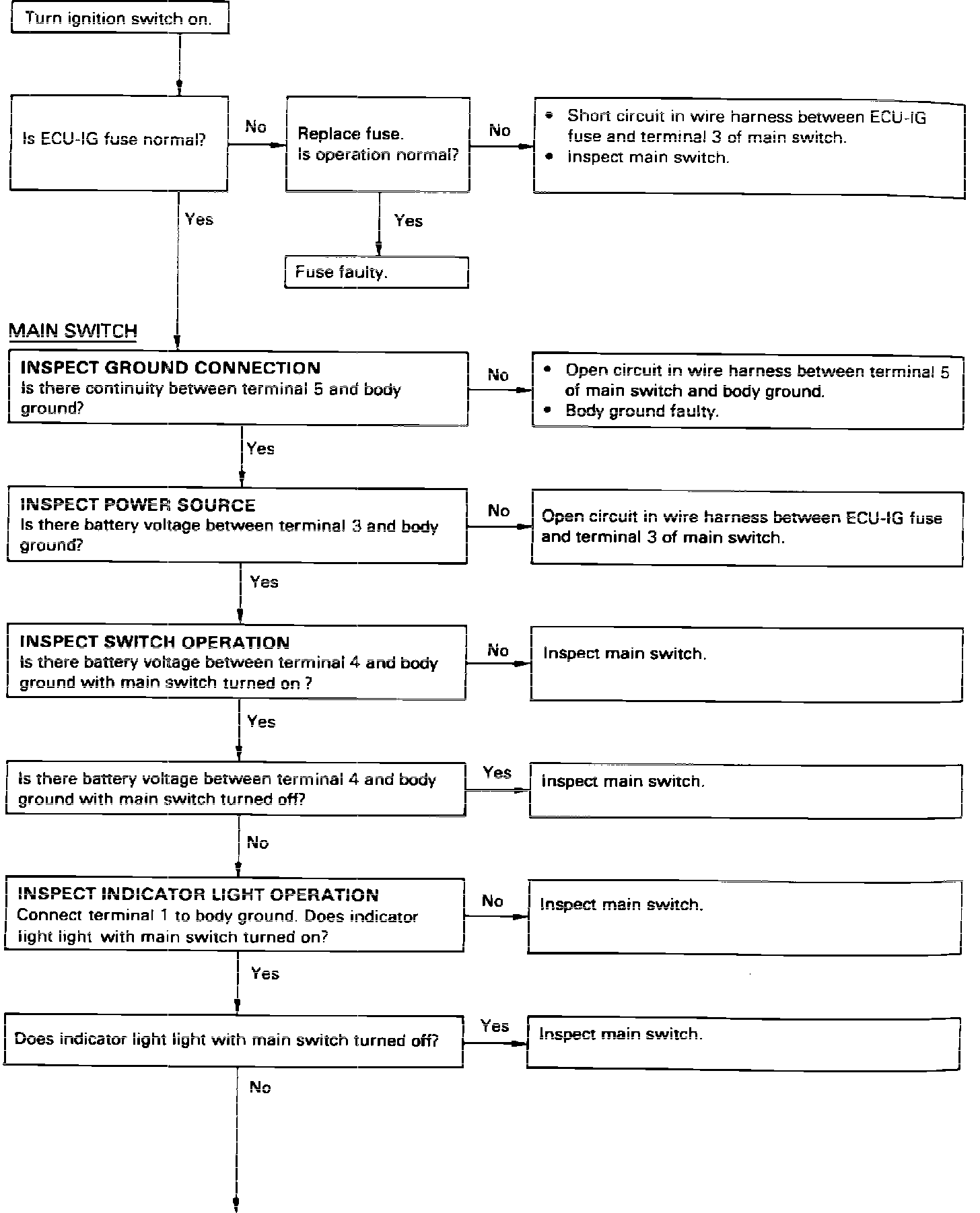

Power Source Circuit Inspection (Part 1):

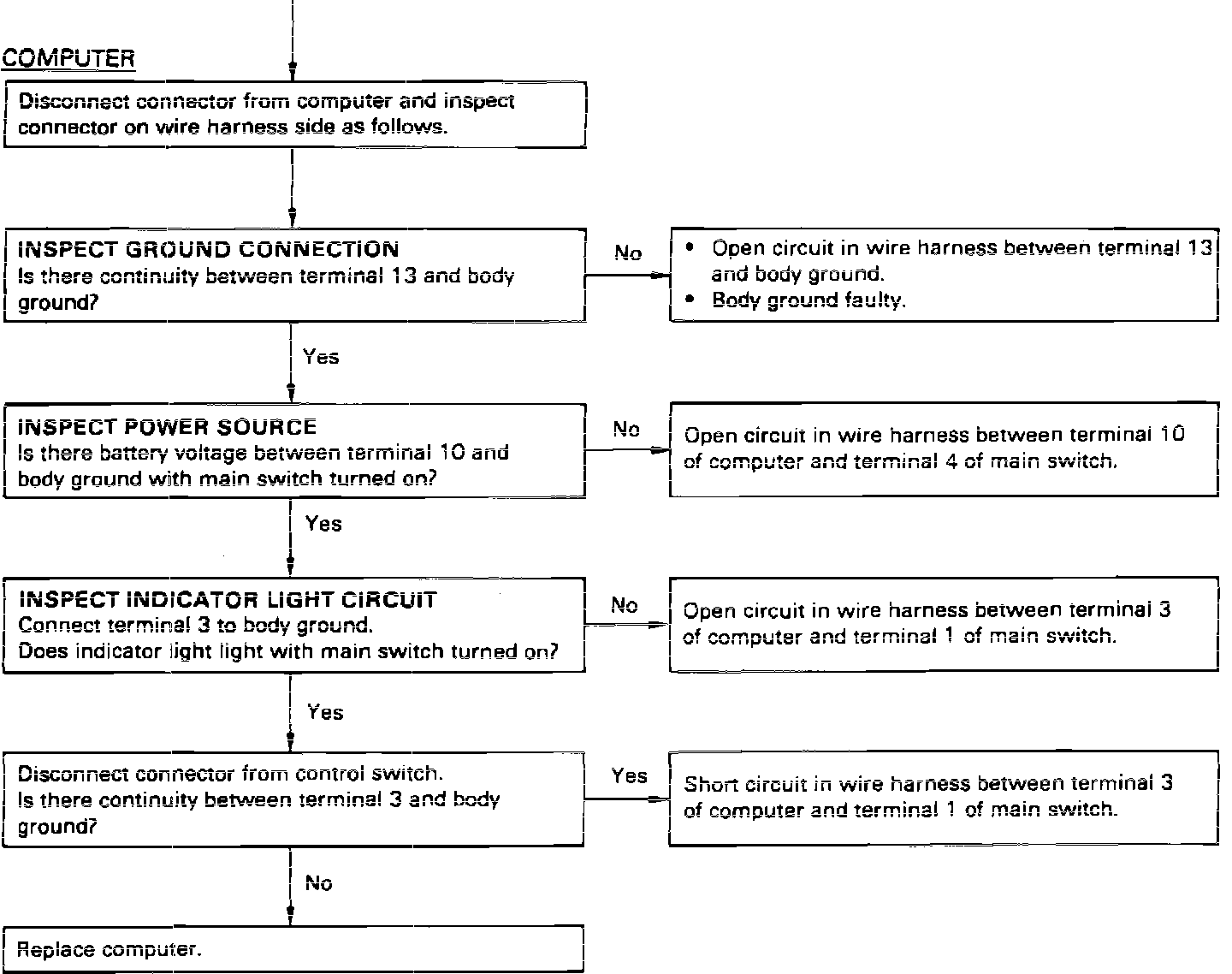

Power Source Circuit Inspection (Part 2):
