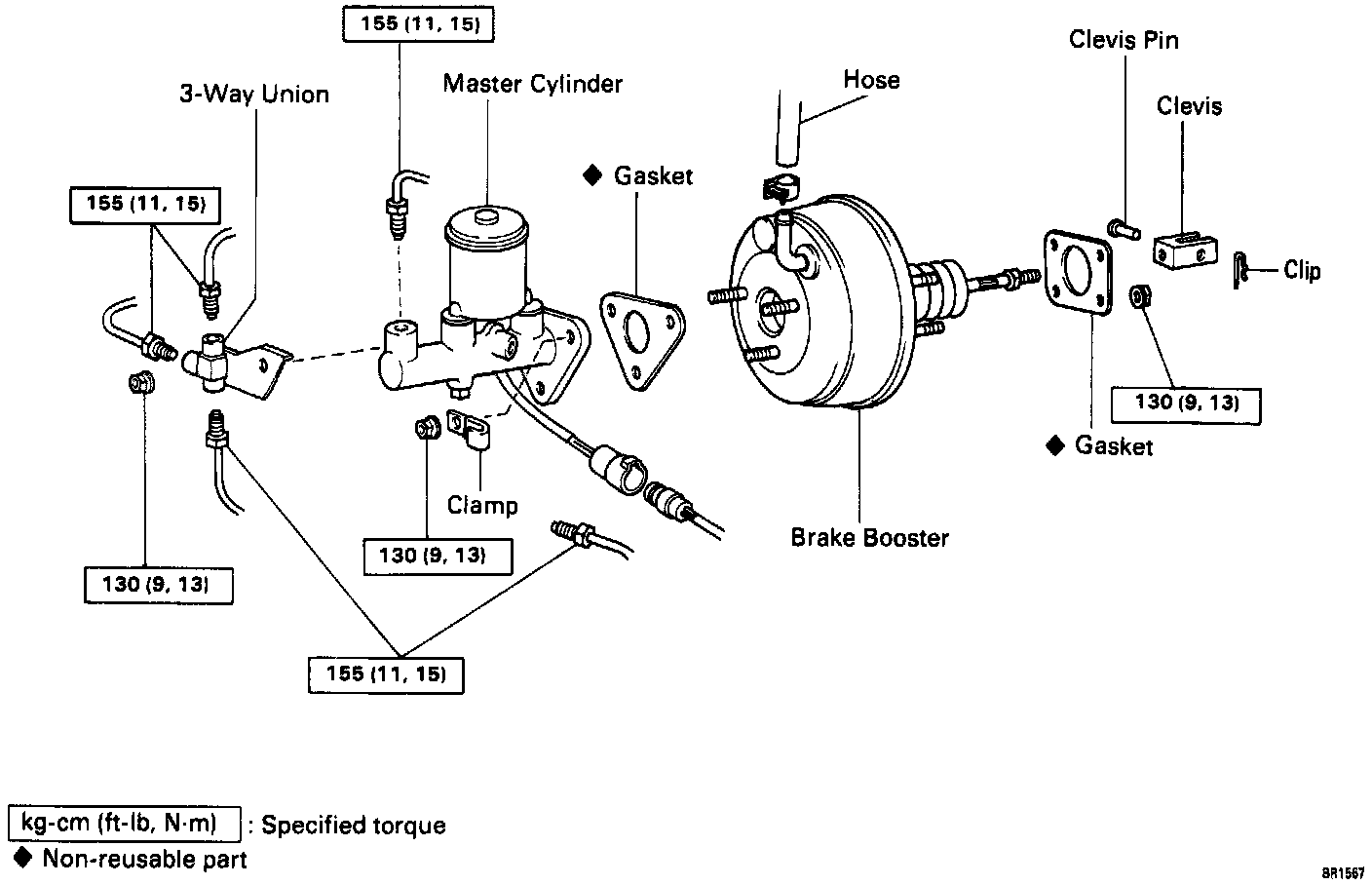

Removal

- Remove master cylinder.
- Disconnect vacuum hose from brake booster.
- Remove pedal return spring.
- Remove clip and clevis pin.



- Remove the four nuts and clevis.
- Pull out the brake booster and gasket.
