Removal and Installation

For additional information see Removal and Installation Notes. Service Notes

REMOVAL OF CYLINDER (CALIPER)

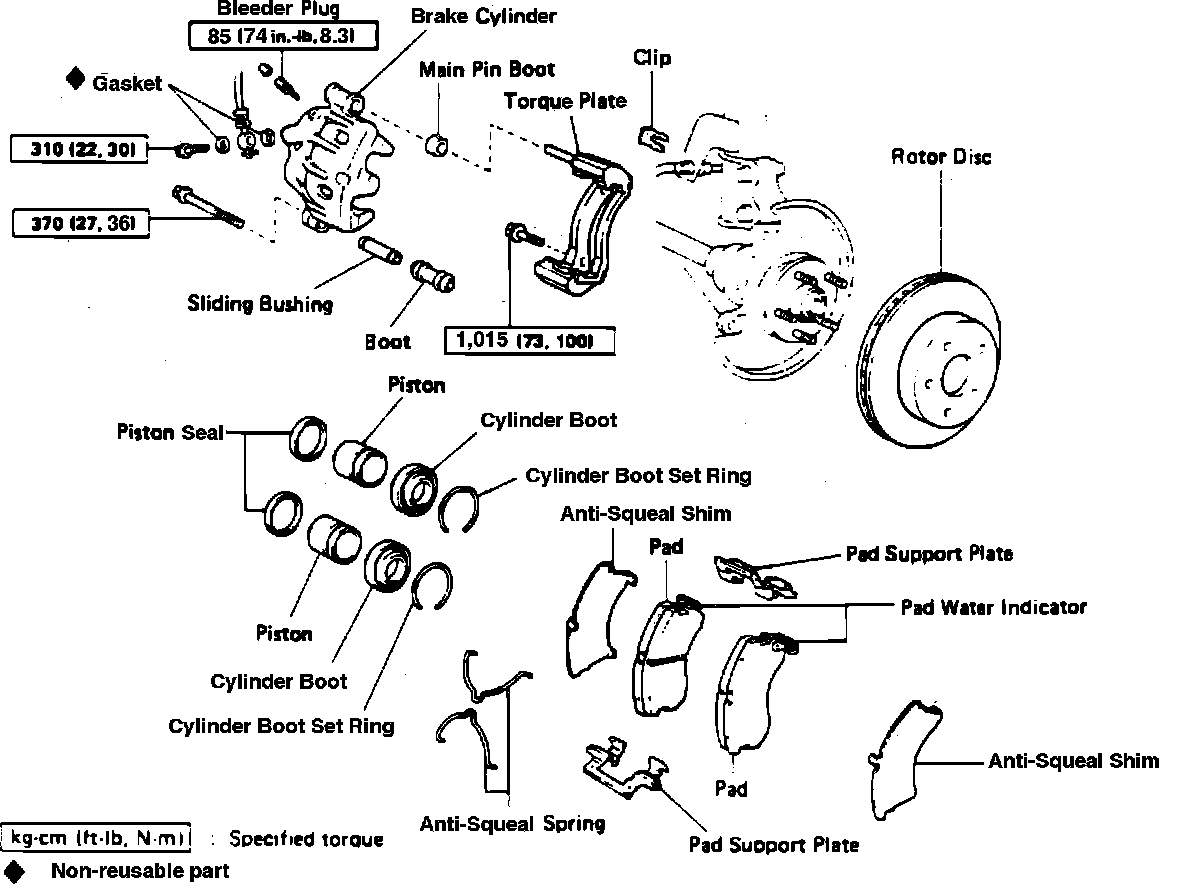

Fig. 14 Exploded View Of Disc Brake Assembly.:

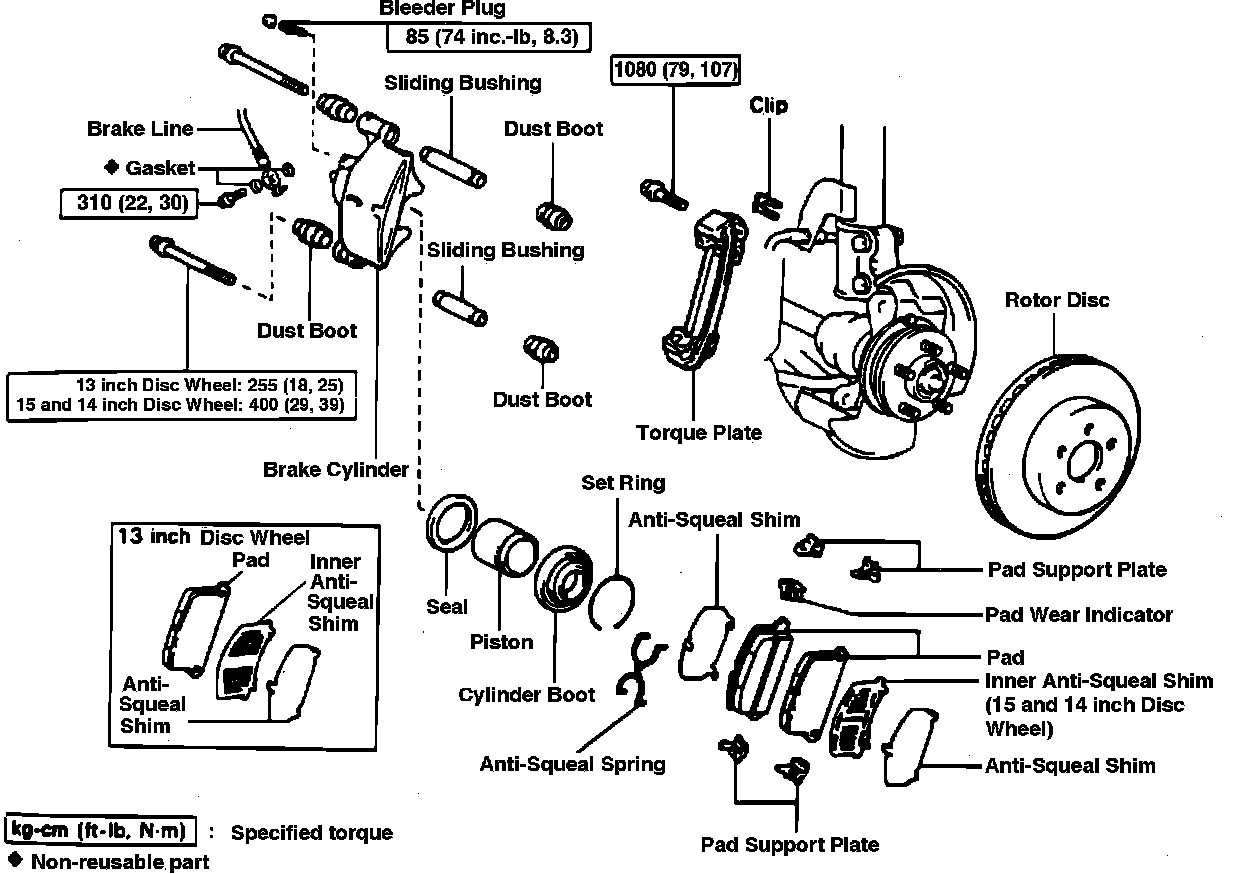

Fig. 15 Exploded View Of Disc Brake Assembly. 1989 Celica w/AWD:

Fig. 16 Exploded View Of Disc Brake Assembly. 1990 Celica:

- Raise and support vehicle and remove front wheel.




- Remove union bolt and disconnect brake hose. Use suitable container to catch brake fluid.




- Remove the two installation bolts and remove caliper.




- Remove anti-squeal shims and brake pad wear indicator plates.
- Remove support plates.

INSTALLATION OF CYLINDER (CALIPER)




- Install pads
- Install cylinder
- Install flexible hose to brake cylinder



- Set the flexible hose and new gaskets in position and install the union bolt.

Torque: 30 Nm (22 ft.lb.)

- Fill brake reservoir with brake fluid and bleed brake system
- Check for leaks
