Master Cylinder

BLEEDING THE MASTER CYLINDER
NOTE: This operation requires a helper.

NOTE: If any work is done on the brake system or if air is suspected in the brake lines, bleed the system of air.

CAUTION: Do not let brake fluid remain on a painted surface. Wash it off immediately.

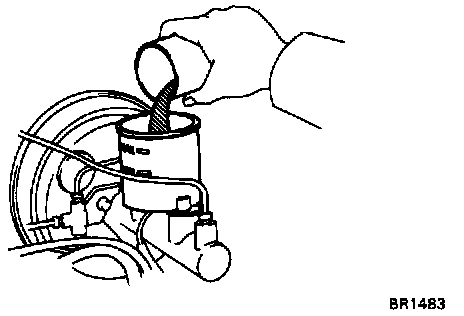

- Check the fluid level in the reservoir. If necessary, add brake fluid.

NOTE: If the master cylinder was disassembled or if the reservoir becomes empty, bleed the air from the master cylinder.

- Disconnect the brake tubes from the master cylinder.

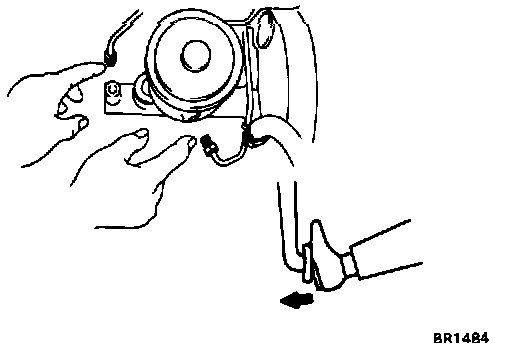

- Have a helper depress the brake pedal and hold it.

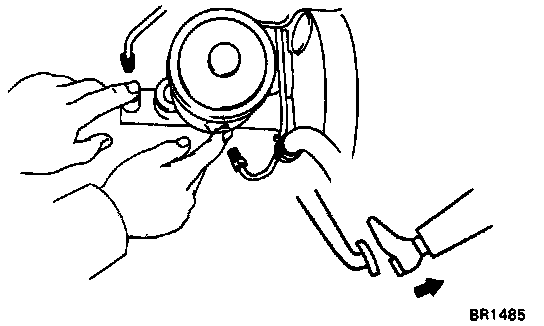

- Block off the outer holes with your fingers, and release the brake pedal.
- Repeat three or four times.
- Reconnect the brake tubes to the master cylinder.
- Refill the master cylinder.
