Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 3 - ABS Warning Light Goes On and Off

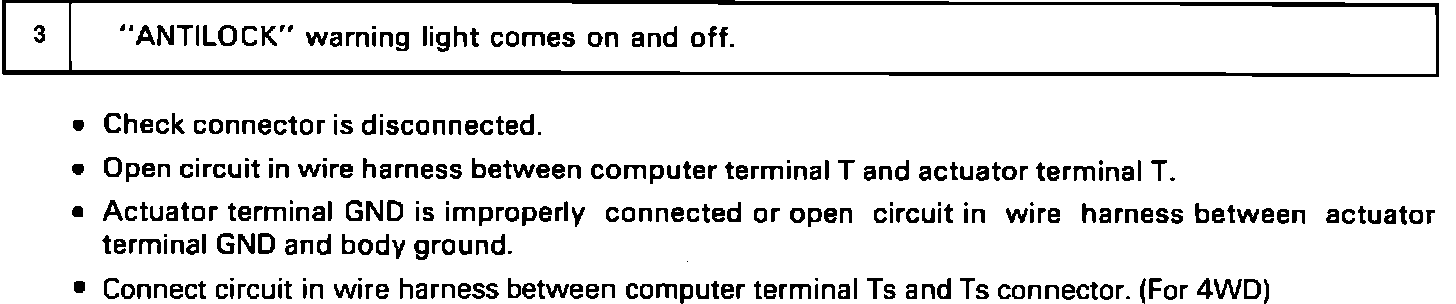

3 - ABS Warning Light Goes On and Off

Diagnostic Procedure #3:
