Pretest Procedure

Ts Connector:

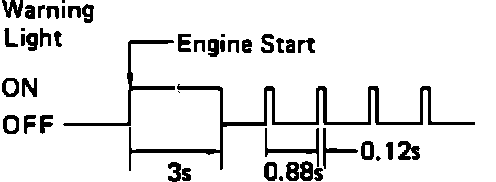

Warning Light Pattern:

1. Locate the Ts connector near the actuator and remove the rubber cap.
2. Connect the terminals of the Ts connector.
3. Depress the brake pedal and pull up on the parking brake while you start the engine.
4. The ABS warning light should start to blink about 1 time every second.
NOTE: Check the stop light switch, parking light switch, Ts connector, and the deceleration sensor installation if the warning light fails to blink.
