Audio - Inoperative Cassette Player
89toyota06VOLUME REFERENCE AUDIO
NUMBER 007
10 DATE 08-04-89
MODEL AE, EL, MA, ST, SV, YR
TITLE INOPERATIVE CASSETTE PLAYER

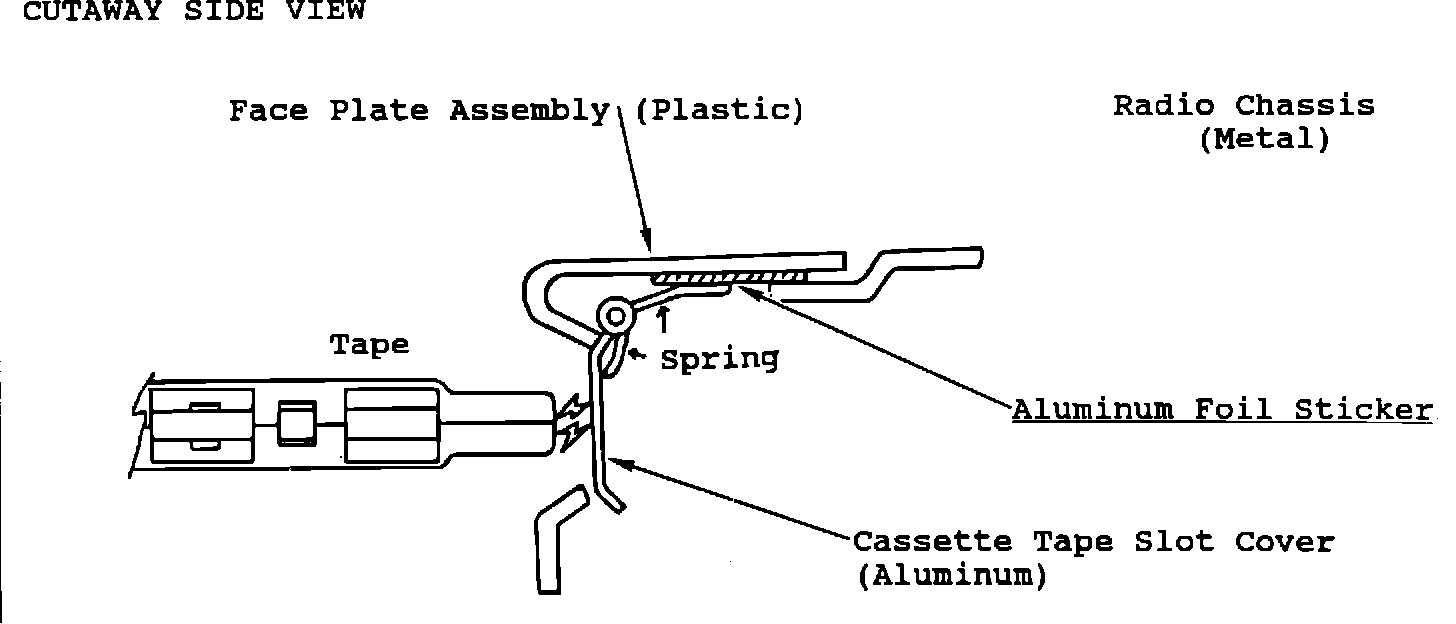

To prevent electrostatic discharge from disabling the cassette player, an aluminum foil sticker has been added to the inside of the face plate assembly: This sticker provides a pathway for the electrostatic discharge originating from a cassette to go directly to the audio chassis and avoid any damage to the printed circuit board and components.
The following are examples of electrostatic damage:
^ Tape will not eject.
^ Player will not accept tape.
^ Tape player is inoperative.
NOTE: If a customer comes in with a tape "stuck" condition, do not attempt to remove the tape. Forcible removal of the tape will damage the tape player mechanism. Instead, contact Fujitsu Ten for a replacement unit and request to have the tape returned.
PRODUCTION EFFECTIVE:
EXCHANGE UNIT INFORMATION:
Fujitsu Ten National Service Headquarters (U.S.A.) began improvement of exchange units on February 15, 1989.

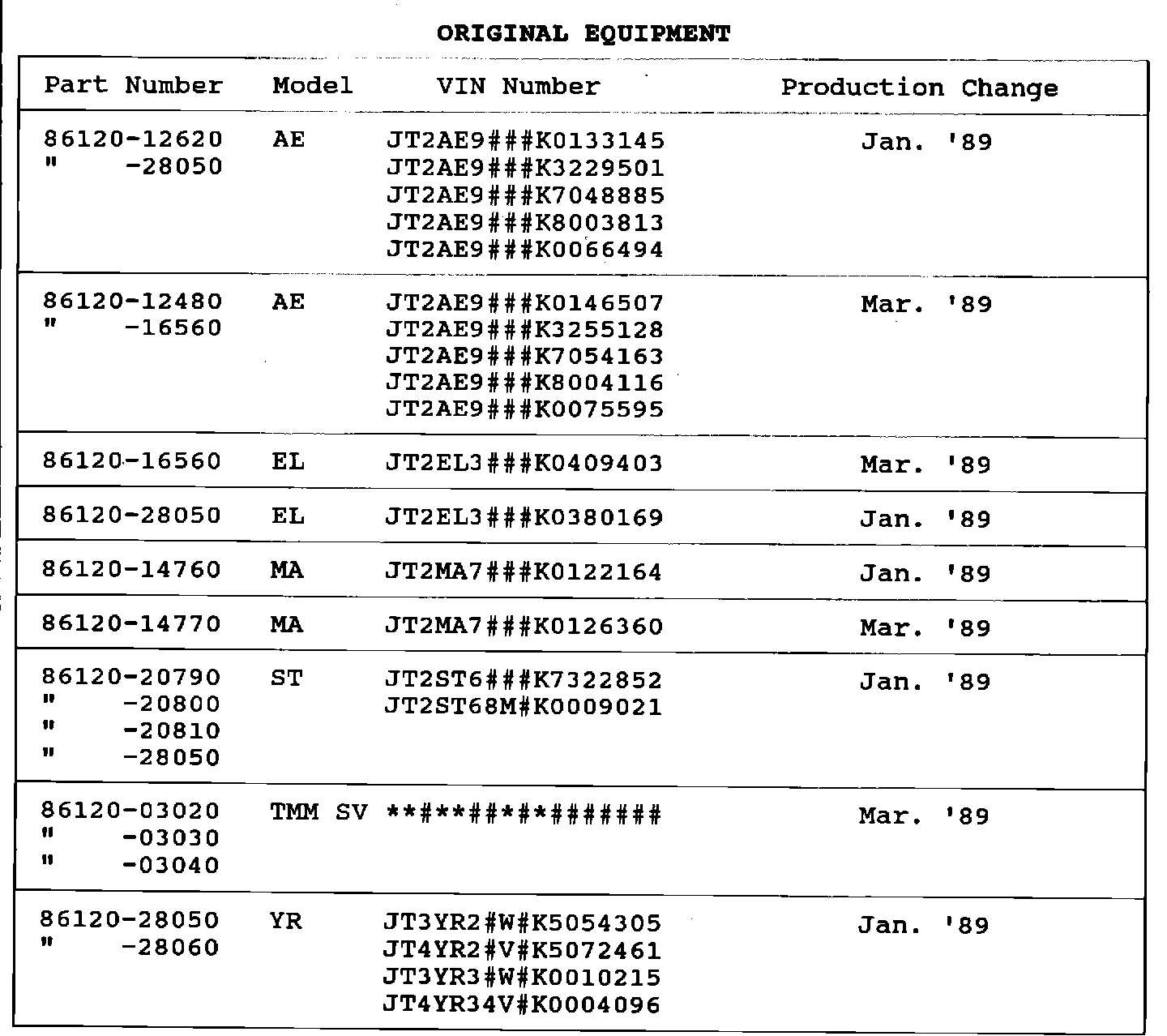

PART NUMBER INFORMATION:
All Part Numbers remain unchanged.
