FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Toyota
>>
1987
>>
Celica L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
A/T Torque Data
A/T Torque Data

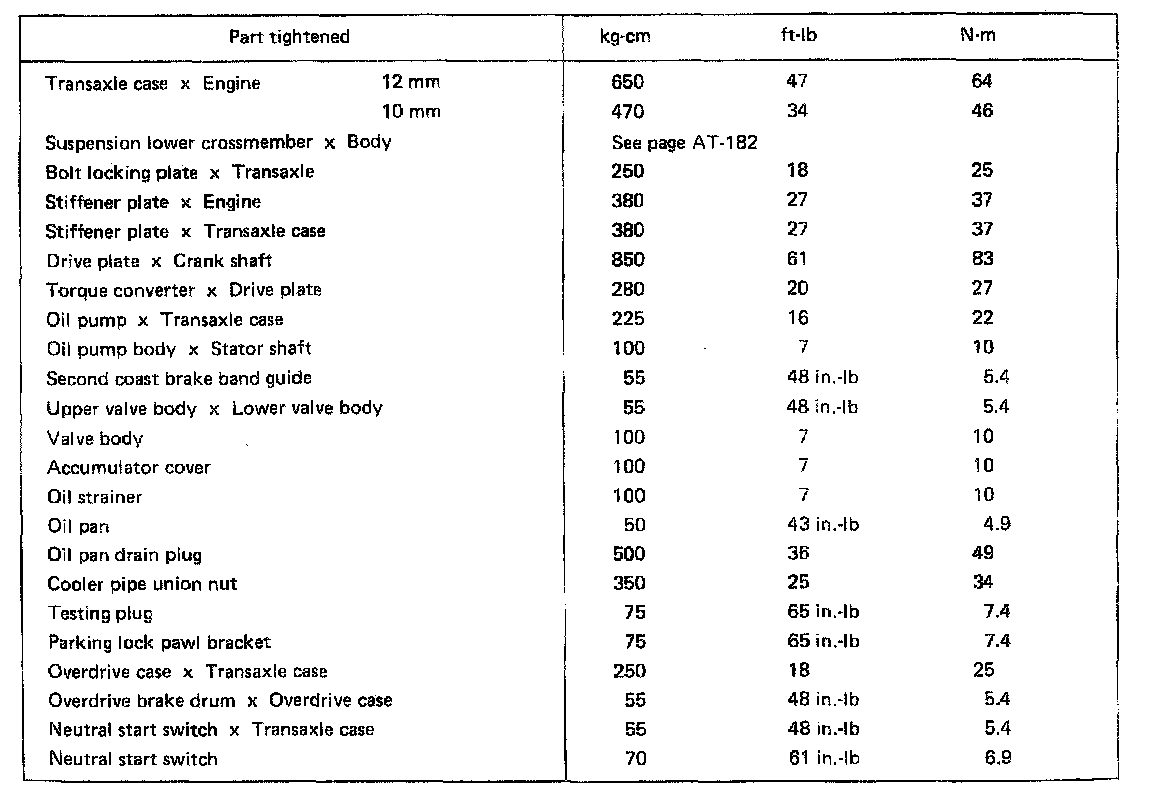

A140L 3-spd O/D A/T, Transmission Torque:

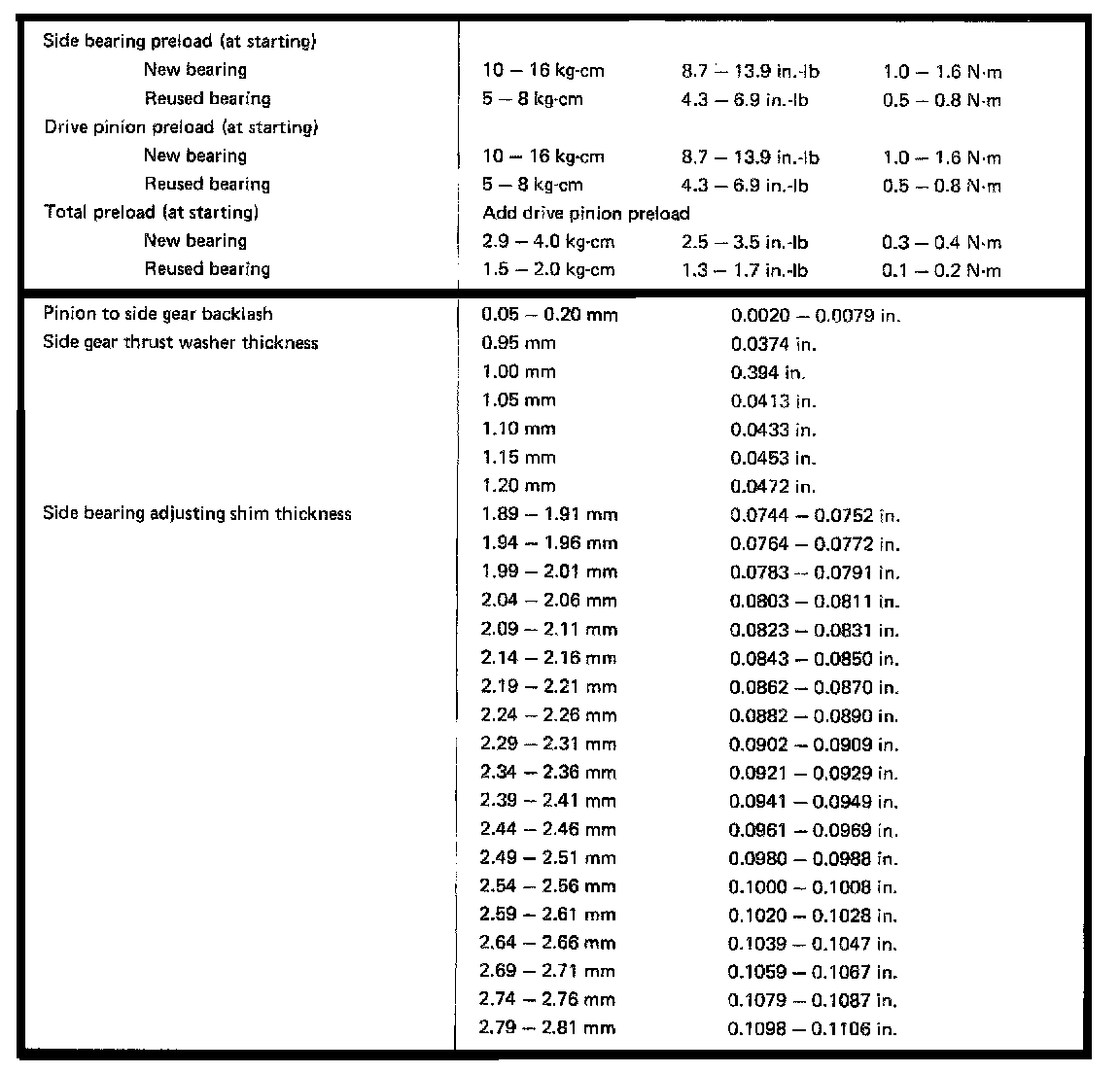

A140E - A140L 3-spd O/D A/T, Differential Torque/Clearances:
A140E - A140L 3-spd O/D A/T, Differential Torque:
