Blower Motor Switch: Testing and Inspection

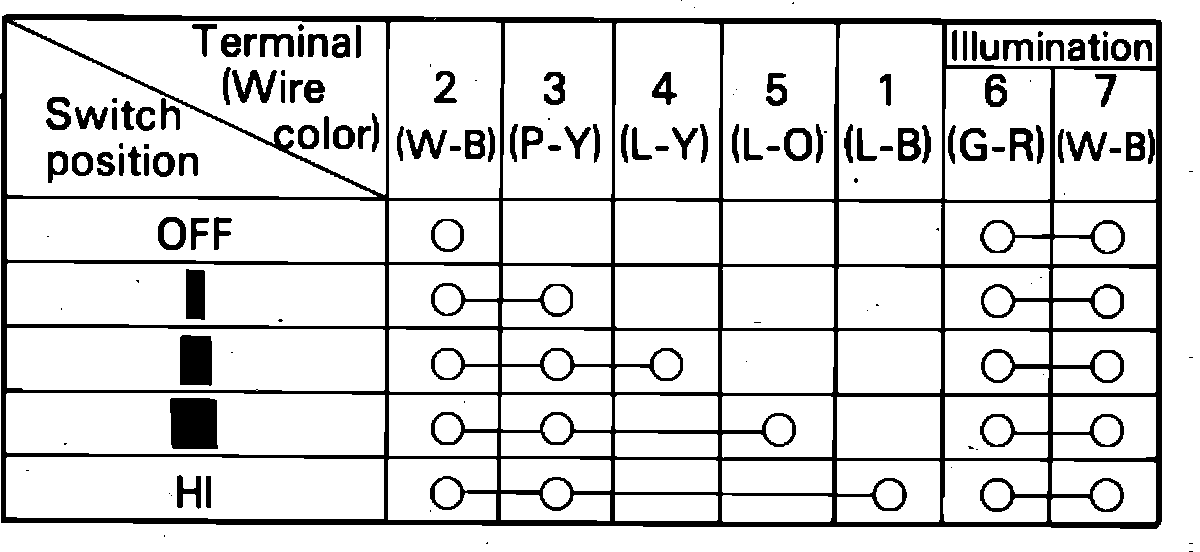

Fig. 37 Heater Blower Switch Continuity Test:

Check continuity of heater blower switch as shown in Fig. 37. If continuity is not as specified, replace switch.
