1985 3A-C Engine, California

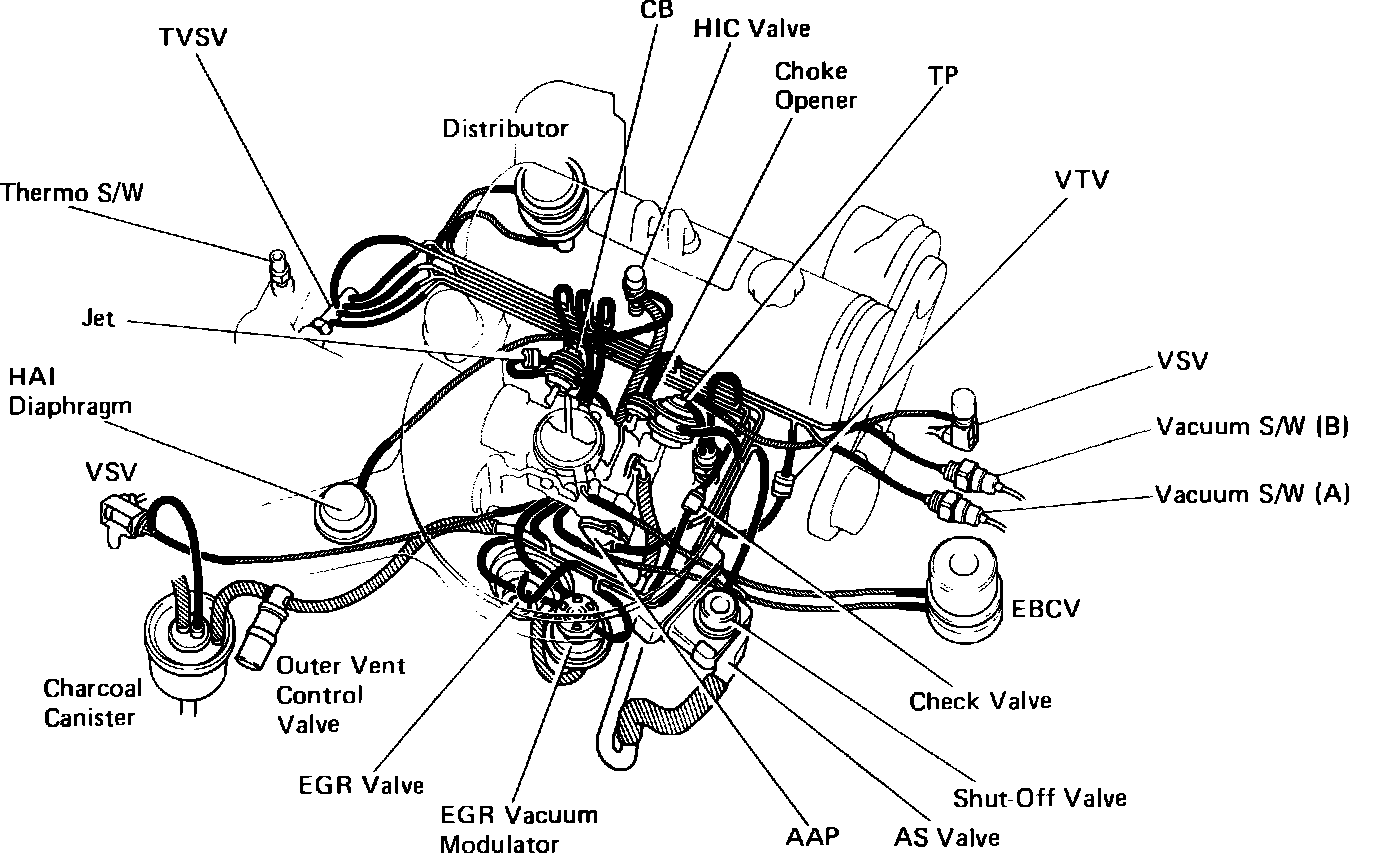

Fig. 2 Emission control system & engine compartment reference diagram.:
