Instruments - Clock Installation Procedures

REFERENCE ACCESSORIES
NUMBER DATE MODEL-AL

extension cord,:

To provide a wider range of installation possibilities of the Tercel clock an extension cord has been made available and is currently in stock.

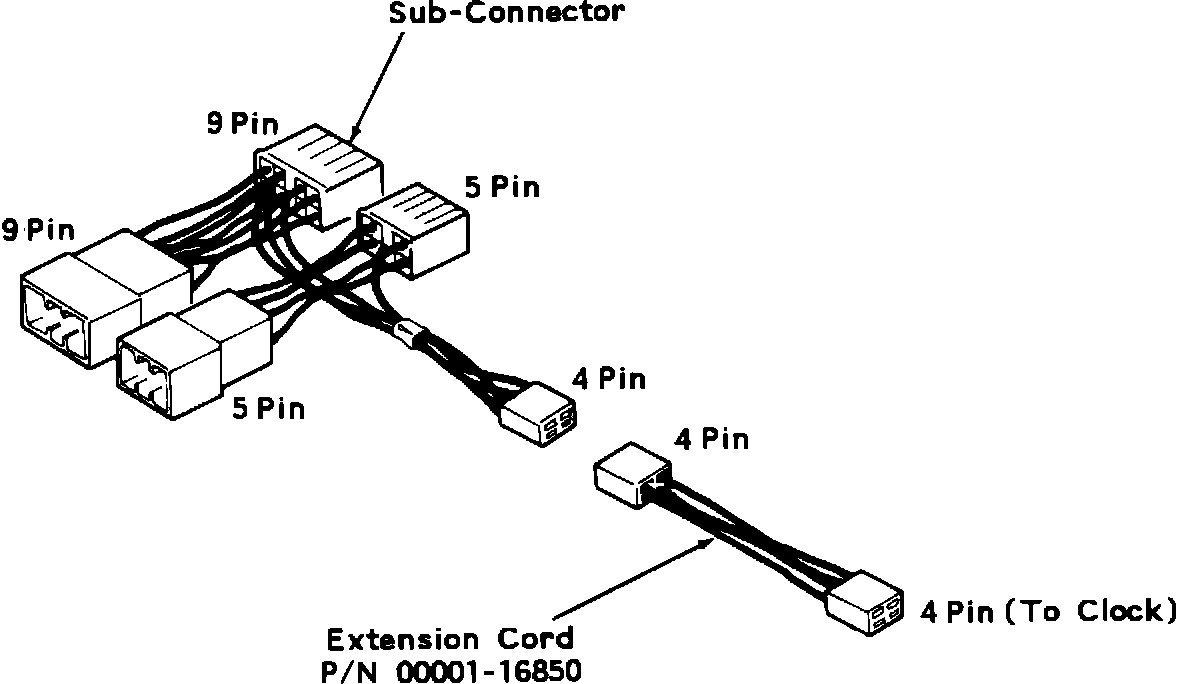

The extension cord, l/N 00001-16850, connects to the 4-Pin connector of the clock sub-harness connector and allows the clock to be installed in the third *DIN of the three *DIN dash model vehicles. (Deluxe)

This extension cord, P/N 00001-16850 is only required for clock P/N 08502-16010, as it is already included in the new clock kit P/N 08502-16011.
NOTE: *(Deutsche lndustric Normen) German industrial standards that are used as standard dimensions (180mm x 50mm) for all Toyota audio components.
